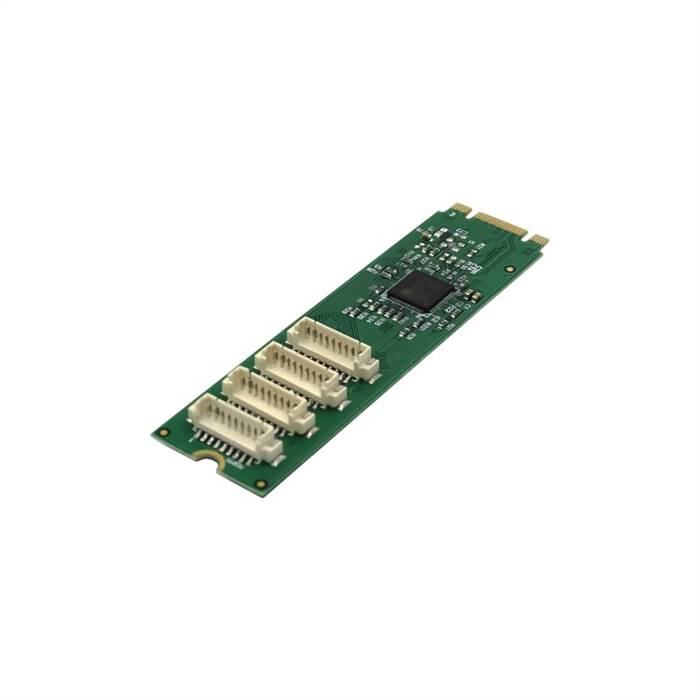

The M.2 B+M Key AX99100 4-port Serial Adapter is a single chip solution that fully integrates PCIe 2.0 end-point controller. It has quad serial ports, which can be easily to expand more devices. The serial port supports RS-232 protocol and it has transmission speed up to 115200bps. It supports hardware and software flow control.

Specification

• Single-lane(x1)PCI-Express End-point controller with PHY integrated
• Compliant with PCI Express 2.0 Gen1
• Compliant with PCI Express M.2 Specification version1.0
• Compliant with PCI Power Management 1.2
• Connector type: B+M KEY, size:22*80mm
• Supports operating System: Linux kernel 4.x/3.x/2.6.x ,Windows XP/Vista/Win7/Win8/Win8.1/Win10 32/64bit

Serial port interface

• Quad RS-232 port
• Full serial Modem control
• Supports hardware ,software Flow control
• Supports 5,6,7,8 and 9-bit Serial format
• Supports Even, Odd, None, Space and Mark Parity
• Supports Custom baud rate by internal PLL
• Supports on chip 256 Byte depth FIFOs in Transmit, Receive path of each serial port
• Supports remote wakeup and power management features
• Supports Slow IrDA mode(up to 115200bps) on all serial ports

Package content

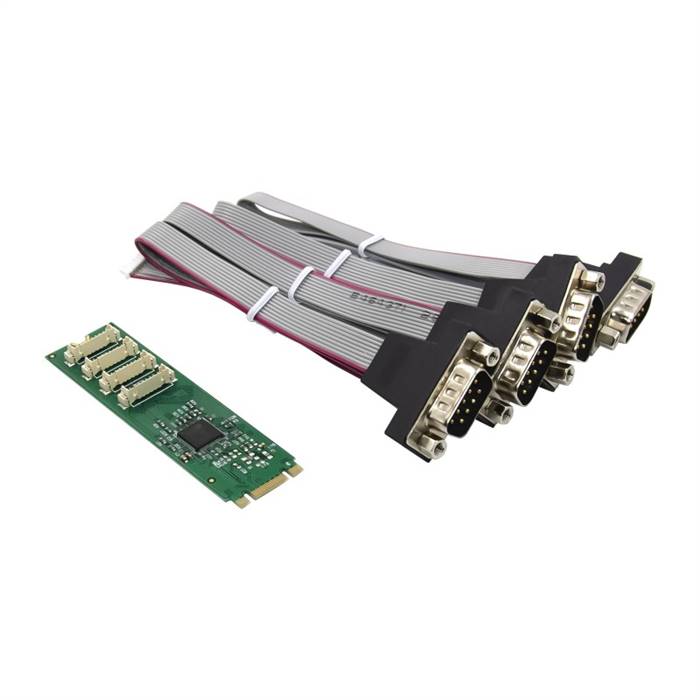

• 1 x M.2 B+M KEY AX99100 4-Port Serial Adapter
• 1 x User Manual
• 1 x Driver CD
• 2 x High profile bracket
• 2 x Low profile bracket

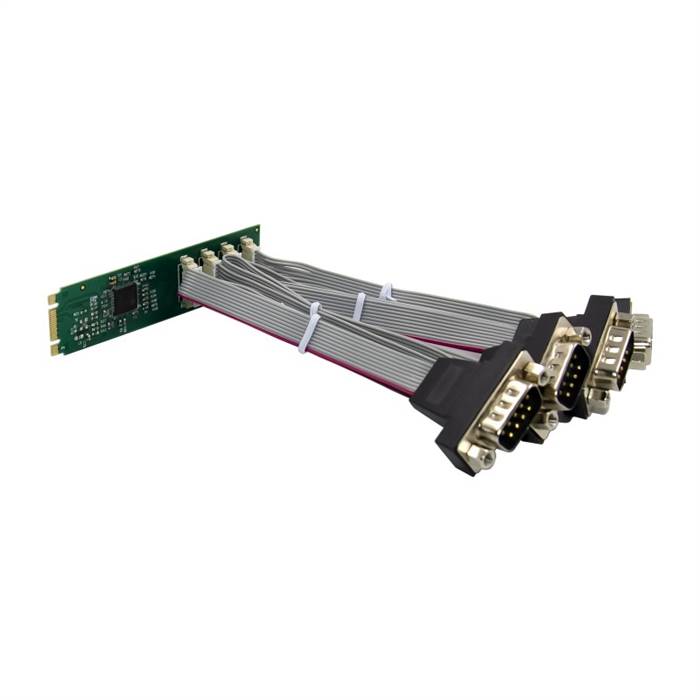

• 4 x 20CM DB9-9Pin serial cable

System Requirements

• Linux, Windows XP/Vista/Win7/Win8/Win8.1/Win10 32bit or 64 bit
• One available M.2 M key or B key slot
