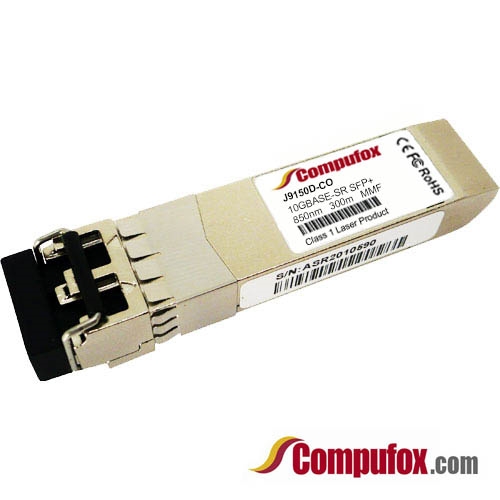

HP/Aruba J9150D Compatible 10GBASE-SR SFP+ Optical Transceiver Module (MMF, 850nm, 300m, LC, DOM).
Features:
10GBase-SR Features
|
Form Factor SFP+
|
Data Rate 10G
|
|
Wavelength 850nm
|
Cable Distance* 300m@OM3/400m@OM4
|
|
Connector Duplex LC
|
Cable Type MMF
|
|
Transmitter Type VCSEL
|
Receiver Type PIN
|
|
TX Power -7.3~-1dBm
|
Receiver Sensitivity < -11.1dBm
|
|
Power Budget 3.8dB
|
Receiver Overload -1dBm
|
|
Power Consumption <1W
|
Extinction Ratio >3dB
|
|
DDM/DOM Yes
|
Commercial Temperature 0 to 70°C
|
*
Minimum cabling distance for SR modules is 2m, according to the IEEE 802.3ae.
