IBM5735

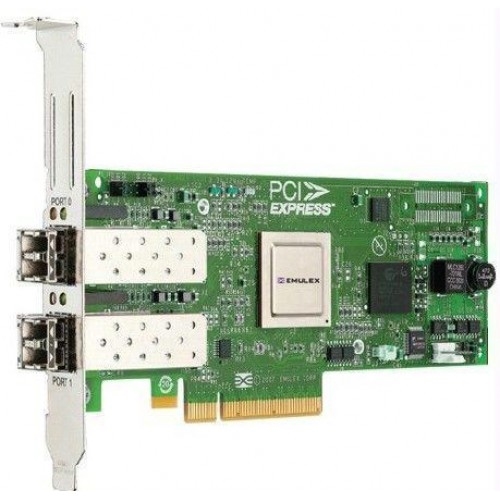

IBM 8 Gigabit PCI Express Dual Port Fibre Channel Adapter

Specifications
Wrap plug FRU number:
12R9314 (Designed to comply with RoHS requirement)
11P3847 (Not designed to comply with RoHS requirement)
I/O bus architecture:
PCI Express (PCIe) Base and CEM 2.0
x8 PCIe bus interface
Slot requirement: One available PCIe x8 or x16 slot
Voltage: 3.3V
Form factor: Short, low-profile with standard size bracket
FC compatibility: 2, 4, 8 gigabit
Cables: Cables are the responsibility of the customer. Use multimode fibre optic cables with short-wave lasers that adhere to the following specifications:
OM3: Multimode 50/125 micron fibre, 2000 MHz*km bandwidth
OM2: Multimode 50/125 micron fibre, 500 MHz*km bandwidth
OM1: Multimode 62.5/125 micron fibre, 200 MHz*km bandwidth
Because core sizes are different, OM1 cables can only be connected to other OM1 cables. For best results, OM2 cables should not be connected to OM3 cables. However, if an OM2 cable is connected to an OM3 cable, the characteristics of the OM2 cable apply to the entire length of the cables.

Operating system or partition requirements
AIX 5L™ Version 5.3 with the 5300-09 Technology Level, or later
AIX® Version 6.1 with the 6100-02 Technology Level, or later
IBM® i 6.1, or later
Red Hat Enterprise Linux version 4 U7
Red Hat Enterprise Linux version 5 U2
SUSE Linux Enterprise Server 10, SP2
