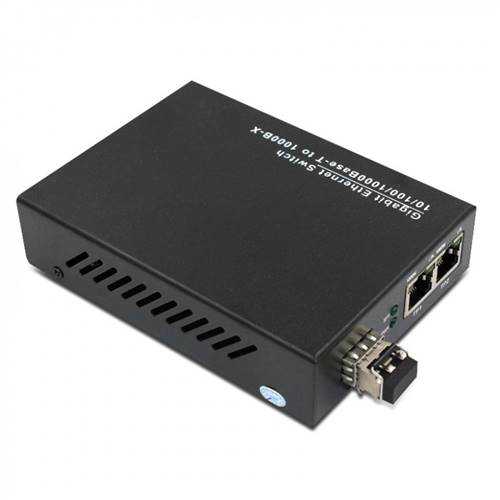

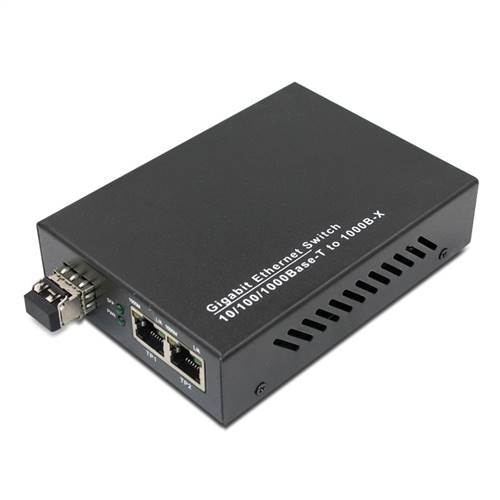

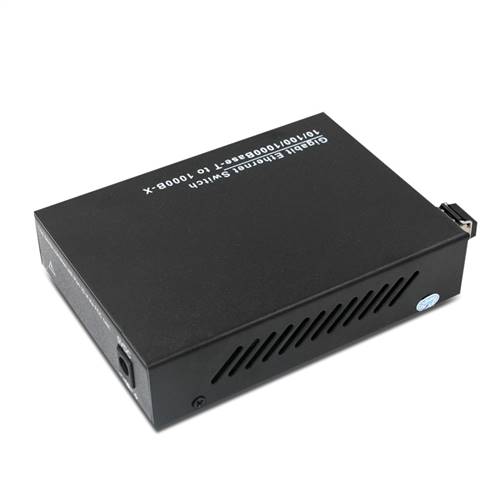

Compufox's 10/100/1000M Gigabit SFP Media Converters
transparently connect Gigabit copper to SFP for multimode or singlemode
fiber. Our Gigabit Ethernet to Fiber Converters provide an economical
path to extend the distance of an existing network, the life of
non-fiber based equipment, or the distance between two devices. The
pluggable fiber optics port allows for flexible network configurations
using
SFP transceivers supplied by Compufox, Cisco, HP or other manufacturers of MSA compliant SFPs.
Network Administrators can "see-everything" with Compufox's advanced
features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fiber
Fault Alert, and Loopback. This allows for more efficient
troubleshooting and less on-site maintenance. These cost and time saving
features, along with a 3-year warranty and free worldwide technical
support, make Compufox's Gigabit SFP Converters the smart choice for IT professionals.
Features
- 10/100/1000Base-T to 1000Base-X or 100Base-X Fiber SFP Media Converters
- Connect 10/100 devices to Fast Ethernet or Gigabit backbone
- Empty slot for Compufox and other industry standard Gigabit or Fast Ethernet Fiber SFPs
- Automatically adjusts to speed of Gigabit and Fast Ethernet fiber SFP´s
- Advanced features - Smart Link Pass-Through, Fiber Fault Alert, Auto-MDIX and Loopback
Specifications
|
Parameter
|
Specifications
|
|
Access Mode
|
10/100/1000Mbps
|
|
Standards
|
IEEE802.3,
IEEE802.3u,
IEEE802.3z/ab,
10/100/1000Base-T/SX/LX/BX/EX/ZX
|
|

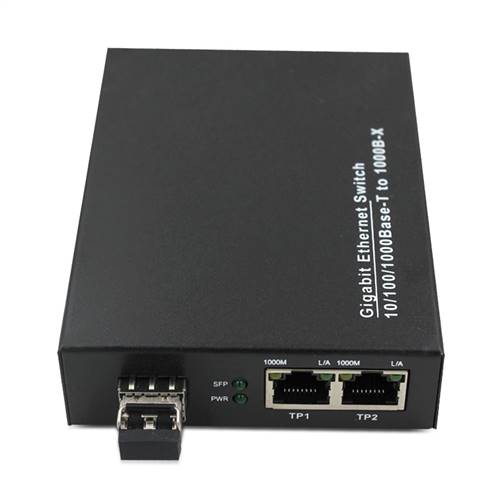

Interface
|
2 x Ethernet port (RJ45) 10/100/1000Base-Tx
1 x GE SFP slot
|
|
Transmission Distance
|
Fiber Port: up to 120km
RJ45 Port: 100m
|
|
LED Indicators
|
FX, TP1000, FX Link Act, TP Link Act, PWR,
FDX.
|
|

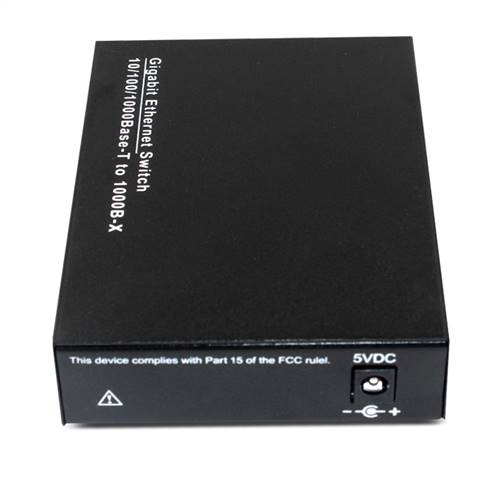

Power Supply
|
AC 110V~240V, DC 5V+2A, DC-48, DC24V, DC12V
|
|
Power Consumption
|
3W
|
|
Operating Temperature
|
-10 ~ 60 ?
|
|
Operating Humidity
|
5%~90%
|
|
Maintaining Temperature
|
-40~70ºC
|
|
Maintaining Humidity
|
5% ~ 90% non-condensing
|
Applications
1, Extend the network distance between two twisted pair Gigabit Switches
Two Gigabit Ethernet Media
Converters can extend the distance between 1000Base-T Switches across a
fiber link up to 80Km in length.
2, Extend the network distance between a Gigabit Switch and a Gigabit File Server
Two Gigabit Ethernet Media
Converters can extend the distance between a 1000Base-T Switch and a
Gigabit File Server across a fiber link up to 80Km in length.
3, Extend Gigabit to 550m over 62.5 micron Multimode Fiber
Gigabit across 62.5 micron MMF
cable is normally limited to 275 meters. By adding mode-conditioning
adapters and 1000baseLX media converters you can extend the distance up
to 550 meters on MMF cable plant.
4, Installing Gigabit 1000Base-LX routers and switches into existing multimode cable plants
Using mode-conditioning adapters
and a 1000Base-LX media converter, connect a copper based Gigabit Switch
with a remote 1000base-LX switch/router over existing multimode cable
plant.
5, Connect 10/100 devices to Gigabit Backbone
Devices on a 10/100 ethernet switch
can be connected to a Gigabit backbone through the use of rate
converting 10/100/1000 Media Converters.
