Our Gigabit Ethernet media converters comply with IEEE 802.3/ab
Gigabit Ethernet standard, support two types of media for network
connection such as 10/100/1000Base-T to 1000 Base SX/LX/ZX and connect
these two types of segments to operate smoothly.
The media converters
can be used in 16 slot chassis as plug-in modules. They can transform
1000Base-T (Copper Gigabit) media to 1000Base-SX/LX/ZX (Fiber Gigabit)
media and vice versa.
The 1000Base-T port supports full-duplex Gigabit
connection at wire speed with RJ45 connector, the fiber Gigabit
connection supports shortwave (SX) or long wave (LX) laser optic with
multi-mode or single-mode SC/FC/ST type connector.
This converters will give your Copper Gigabit connection the ability of interface with a fiber connection over a distance up to 80km.
10/100/1000 means that the
media converters can convert the electrical signal of a 10/100/1000
Ethernet signal from copper to fiber. This solution will offer a
low-cost integration option for network managers who want to migrate
from 10/100 networks to Gigabit Ethernet. Gigabit only switches can now
be connected to 10/100 networks without the need to upgrade the 10/100
side.
Features
- Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab, IEEE 802.3x auto-negotiation
- Works at 10Mbps or 100Mbps, full or half-duplex mode, or 1000Mbps full-duplex mode
- Extends distances ranging from 550m (multi-mode fiber) to 120km(single-mode fiber)
- Supports auto MDI/MDIX function
- Status LED for easy monitoring of device status
- Supports jumbo frame size 9K bytes
- External power supply
- Supports independent LFP function
- FCC Class A & CE approved
Specifications
|
Parameter
|
Specifications
|
|
Access mode
|
10/100/1000Mbps
|
|
Standards
|
IEEE802.3,
IEEE802.3u,
IEEE802.3z/ab,
10/100/1000Base-T/SX/LX/BX/EX/ZX
|
|

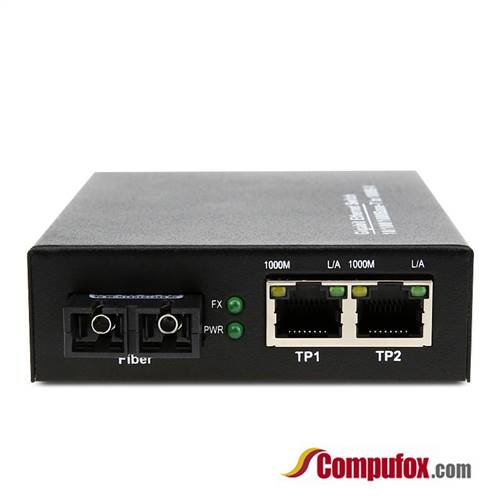

Interface
|
2 x Ethernet port (RJ45) 10/100/1000Base-Tx
1 x Fiber port (1x9) 1000Base-Fx
|
|
Wavelength
|
1310nm Singlemode
|
|
Transmission distance
|
Fiber Port: 40km
RJ45 Port: 100m
|
|
Fiber port connector
|
SC/PC, ST/PC, FC/PC optional
|
|
Conversion means
|
Store and Forward mode
|
|
Flow control
|
Full duplex: flow control,
Half duplex: back pressure
|
|

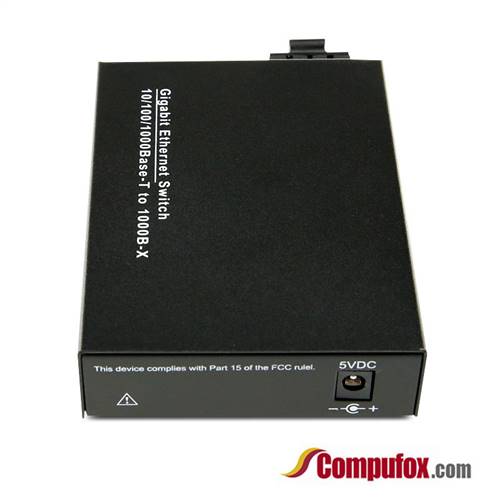

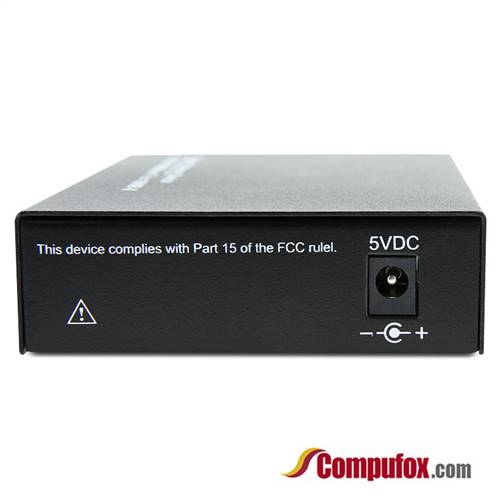

Input voltage
|
AC 110V~240V, DC 5V+2A, DC-48, DC24V, DC12V
|
|
Power consume
|
<3W
|
|
Operating temperature
|
0~50ºC
|
|
Operating humidity
|
5%~90%
|
|
Maintaining temperature
|
-40~70ºC
|
|
Maintaining humidity
|
5% ~ 90% non-condensing
|
Applications
1, Extend the network distance between two twisted pair Gigabit Switches
Two
Gigabit Ethernet Media Converters can extend the distance between
1000Base-T Switches across a fiber link up to 80Km in length.
2, Extend the network distance between a Gigabit Switch and a Gigabit File Server
Two
Gigabit Ethernet Media Converters can extend the distance between a
1000Base-T Switch and a Gigabit File Server across a fiber link up to
80Km in length.
3, Extend Gigabit to 550m over 62.5 micron Multimode Fiber
Gigabit
across 62.5 micron MMF cable is normally limited to 275 meters. By
adding mode-conditioning adapters and 1000baseLX media converters you
can extend the distance up to 550 meters on MMF cable plant.
4, Installing Gigabit 1000Base-LX routers and switches into existing multimode cable plants
Using
mode-conditioning adapters and a 1000Base-LX media converter, connect a
copper based Gigabit Switch with a remote 1000base-LX switch/router
over existing multimode cable plant.
5, Connect 10/100 devices to Gigabit Backbone
Devices
on a 10/100 ethernet switch can be connected to a Gigabit backbone
through the use of rate converting 10/100/1000 Media Converters.
