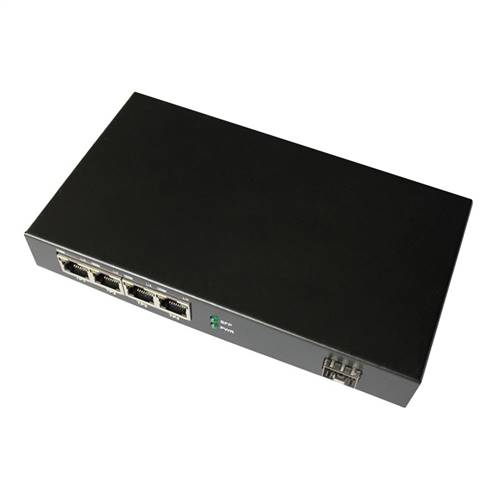

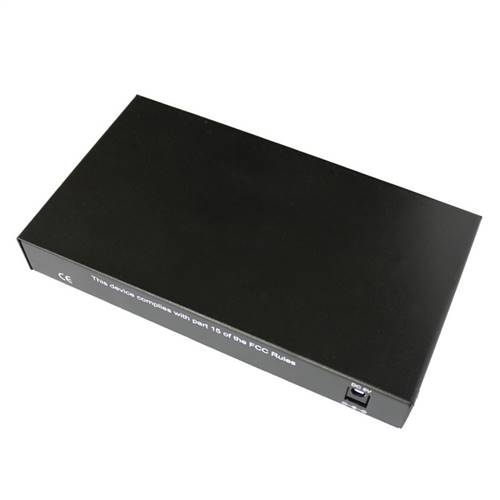

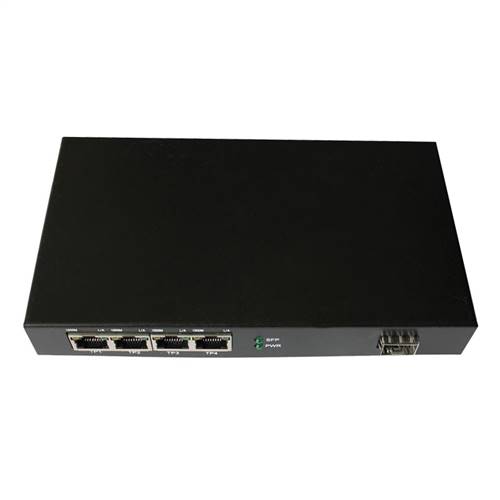

Compufox's Fast Ethernet SFP Media Converters extend copper to
fiber, multimode to multimode and multimode to singlemode fiber. The
pluggable fiber optics port allows for flexible network configurations
using SFP transceivers supplied by Compufox, Cisco, HP or other manufacturers
of MSA compliant SFPs.
Compufox has an extensive range of SFP Media
Converters to meet every fiber conversion need.
Features
- SFP slot for Compufox and other industry standard SFPs
- Extend network distances up to 120km
- Multimode and single mode fiber
- 10/100Base-TX to 100Base-X Fiber
- Supplies IEEE 802.3 PoE & PoE+ PSE power
- Compatible with legacy pre-standard PoE devices
- Advanced features: PD Reset, Smart Link Pass-Through, Fiber Fault Alert, Auto-MDIX and Loopback
Specifications
|
Parameter
|
Specifications
|
|
Access Mode
|
10/100Mbps
|
|
Standards
|
IEEE802.3
10Base-T, IEEE802.3u 100Base-TX ,100Base-FX
|
|
Transmission Distance
|
Category-5 twisted pair: 100m
Fiber: up to 120km
|
|
Interface
|
4 x Ethernet port (RJ45) 10/100Base-Tx
1 x FE SFP slot
|
|
Conversion Means
|
Media conversion,
store-and-forward/cut-through
|
|
MAC Address Table
|
1K
|
|
Buffer Space
|
1Mbit
|
|
Flow Control
|
Full duplex: flow control;
Half duplex: back pressure
|
|
Delay
|
Store-and-forward: 9.6µs; cut-through: 0.9µs
|
|
BER
|
<19-9
|
|
MTBF
|
100,000 hours
|
|
LED Indicators
|
Power, FDX, Status, Speed, FX Link/Act, TX
Link/Act
|
|
Power Supply
|
DC5V 1A (external), AC220 0.5A/DC-48
(internal)
|
|
Power Consumption
|
5W
|
|
Operating Temperature
|
-10~60ºC
|
|
Operating Humidity
|
5%~90% RH
|
|
Maintaining Temperature
|
-40~70ºC
|
|
Maintaining Humidity
|
5% ~ 90% RH
|
Applications
1. Extend the network distance between two UTP switches
Two Fast Ethernet Media Converters can extend the distance between UTP Switches across a fiber link up to 120km in length.
2. Interconnect a UTP Switch with a Fiber Switch
A media converter can interconnect a UTP copper based Switch port to a remote switch that has integrated fiber.
3. Direct Connection between two remote devices
With
a pair of Fast Ethernet Media Converters two devices, such as file
servers, can be connected up to 120km away across a fiber link.
4. Enterprise Infrastructure using Fiber Optics
Create a fiber infrastructure for your enterprise network without any wholesale replacement of existing copper-based equipment.
