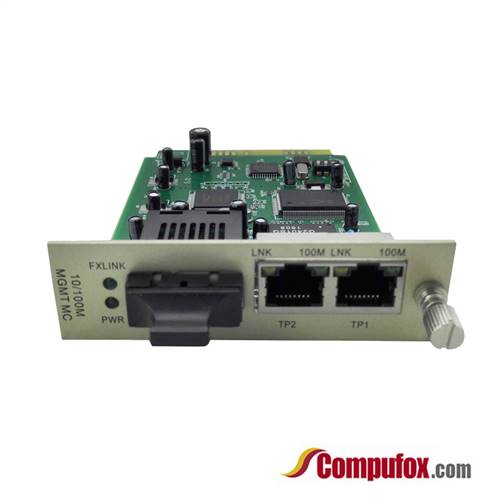

The 10/100M Fiber Media Converter Module is designed to make
conversion between 100Base-FX to 10/100Base-TX Fast Ethernet. With SNMP
agent and web-based management, the network administrator can log on the
converter to monitor, configure and control the activity of each port.
In addition, the converter implements bandwidth rating management
capability via the intelligent software. The overall network management
is enhanced, and the network efficiency is also improved to accommodate
and deliver high bandwidth applications.
The converter is
completely transparent when connected so the network performs exactly
the way it did before - only now, it allows the co-existence of both
copper and fiber mediums.
Added flexibility is available with SC, ST, FC
and WDM Simplex SC connectors. Extra distances are possible with the
single mode version delivering up to 120km connectivity per transmitted
segment.
Features
- Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3xauto-negotiation
- Extends distances ranging from 2km (multi-mode fiber) to 120km (single mode fiber)
- Supporting Hot Pluggable
- Optional 19' System Chassis (FMC-CHAS-16) holds up to 16 Media Converters
- Auto-negotiation of duplex(HDX/FDX) on RJ-45 port
- Auto MDI/MDI-X support on RJ-45 port
- Max. 2046 bytes packet at store-and-forward mode; Max. 9K bytes packet at cut-through mode support on RJ-45 port
- Rate Limit function, 32Kbps
- Supporting Loopback, precisely locating the failure,convenient for link test
- Supporting LFP, quickly locates the failure
- Supporting remote power off alarming
- Economical management function within bandwidth
- Supporting Remote management
- Easy installation with complete LED indicators for working situation
- With powerful network management function, supporting WEBand SNMP
Specifications
|
Interface
|
2 x Ethernet port (RJ45) 10/100Base-Tx
1 x Optical port (1x9) 100Base-Fx
|
|
Optical Port
|
Wavelength: 1310 Singlemode
Transfer Distance: up to 20km;
Connectors: SC/PC, ST/PC, FC/PC optional
|
|
Ethernet Port
|
Available speed: force 10 Mbps, force 100 Mbps
and auto-detective 10/100Mbps Full-Duplex and Half-Duplex Auto-negotiation
Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing
|
|
Standard
|
IEEE802.3（10Base-T）
IEEE802.3u（100Base-TX/FX)
IEEE802.3x (Flow control)
SNMP v1/v2c (Simple Network Management Protocol)
|
|
LED Indicators
|
Power Status, Speed Status, FX Link/Act, TX
Link/Act
|
|
Environmental Limits
|
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Operating Humidity: 10% to 90% RH (non-condensing)
Storage Humidity: 5% to 90% RH (non-condensing)
|
|
Agency Approvals
|
FCC Part 15 of Class A & CE approved
|
Applications
1, High Density Fiber Distribution from UTP Switch Equipment at Corporate Headquarters
In this enterprise campus application, up to 16 Fast Ethernet to Fiber Media Converters are installed in the FMC-CHAS-16 Media Converter Chassis.
A remote fiber enabled Ethernet switch is connected directly to the
central Converter Chassis. A standalone 10/100M Media Converter converts
the fiber to Ethernet in a fiber-to-desktop application. Another
10/100M Fiber Media Converter is connected to a remote office Ethernet
switch. In all cases, multimode or single-mode fiber can be used. Fiber
links can be extended up to 120km using single-mode fiber.
2, Extend the network distance between two twisted pair switches
Two Fast Ethernet Media Converters can extend the distance between UTP Switches across a fiber link up to 120km in length.
3, Interconnect a UTP Switch with a Fiber Switch
A media converter can interconnect a UTP copper based Switch port to a remote switch that has integrated fiber.
4, Fast Ethernet UTP Switch to File Server
Extend
the network distance between switches and file servers Two Fast
Ethernet Media Converters can extend the distance between UTP Switches
and remote file servers across fiber links up to 120km in length.
5, Direct Connection between two remote devices
With
a pair of Fast Ethernet Media Converters two devices, such as file
servers, can be connected up to 120Km away across a fiber link.
6, Enterprise Infrastructure using Fiber Optics
Create a fiber infrastructure for your enterprise network without any wholesale replacement of existing copper-based equipment.
