The Chassis-based Media Converters include a number of independent media converters and a chassis capable of housing up to 16 media converters. You can start with single media converters, each equipped with its own housing and AC power adapter. When your requirements grow big, you can mount a chassis in your equipment rack and install your media converters in the chassis. The housing of each media converter can be easily removed, and the media converter PC board can be slid into the chassis.

The chassis lets you install multiple media converters in an equipment rack together with the network devices for which they provide media conversion. This provides for space saving, and the cabling will look neat. The chassis comes with its own universal AC to DC power supply. For maximum power availability, an optional redundant power supply is available for installation in chassis.

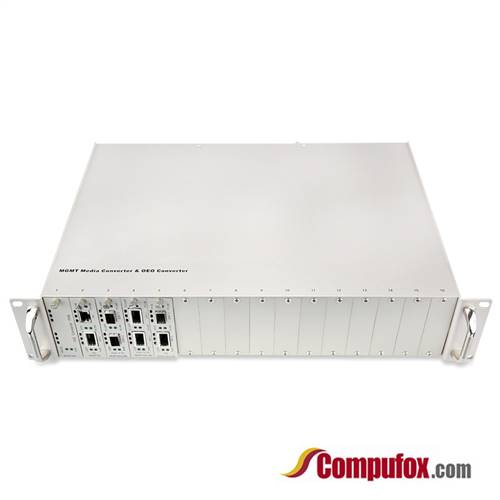

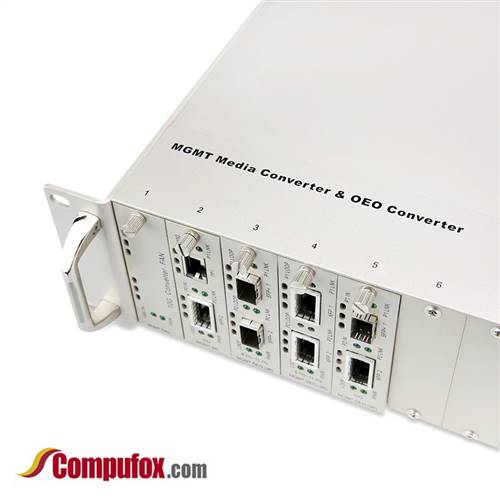

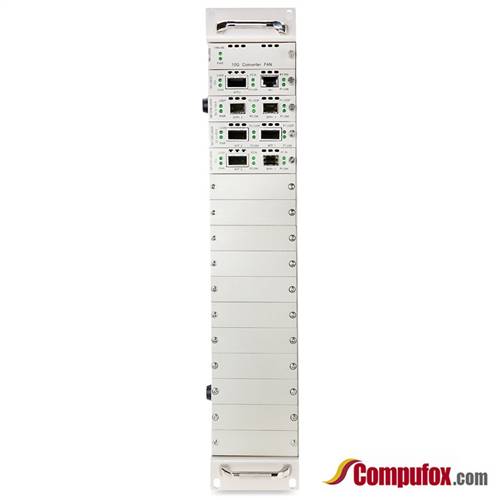

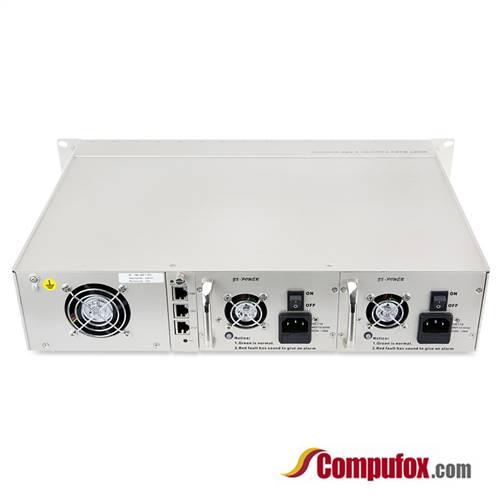

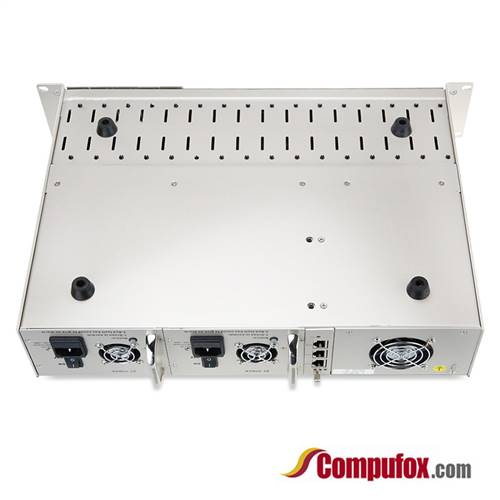

Compufox supply one types of rack-mounted chassis for managed media converters: 2-U 17 slots media converter chassis. The 17 slots media converter chassis supports plug-and-play installation of media convert modules. It can hold at most 16 pieces media converters and 1 piece network management card. The 17 slots media converter chassis media converter chassis should be used with card-type media converters.

Managed 17 Slots Rack Chassis support Card Type 10/100M and 10/100/1000M Fiber Media Converter(not include). The network management card is optional.

Features

• Supprot card type 10/100M and 10/100/1000M Media Converters
• Standard: IEEE802.3 10/100 Base T Ethernet, IEEE802.3U, 100Base V TX/FX Fast Ethernet, IEEE802.3 x Flow control, IEEE802.3.1q VLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree

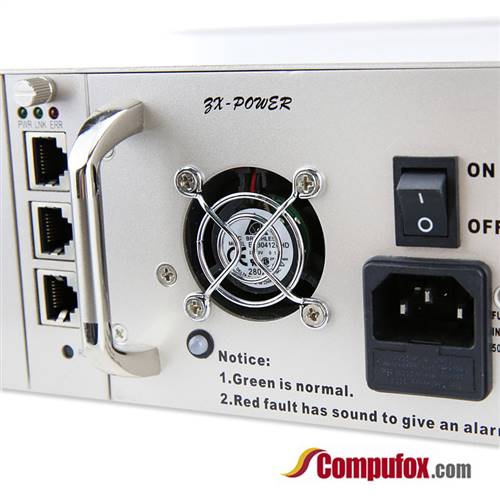

• Power configuration: single power supply; or Dual power supply for warm backup mode
• Hot Swap Support for the Converters to ensure a flexible connection

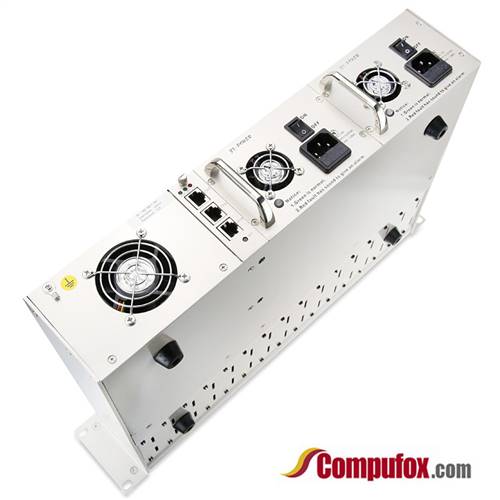

• Equipped with a second, redundant Power Supply for maximum stability and reliability

Specifications

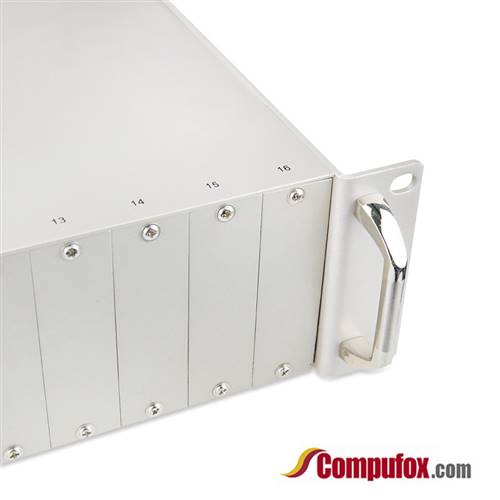

• Number of slots: 17

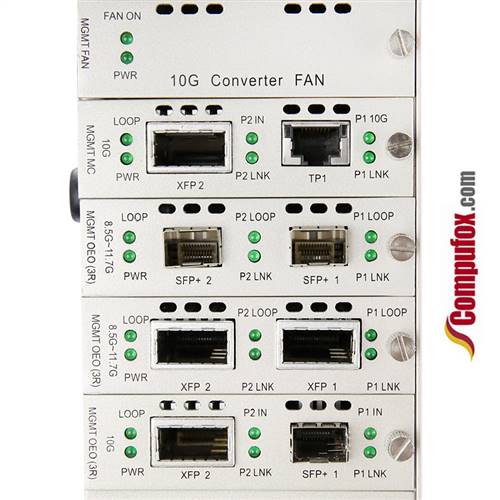

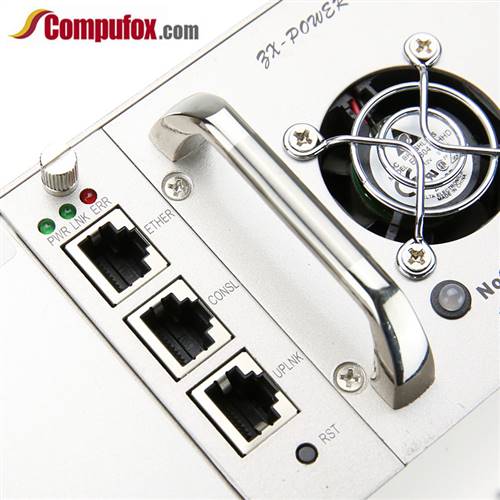

• Media converters adapted: 16 card-type media converters and 1 piece management card
• Power in: AC 100 V~260 V, 50~60Hz ; OR DC 48V
• Power out: DC + 5V , 12A(single power) or 24A(dual power)
• Diameter of DC plug: 2.5/5.5 mm
• Pipple:=50Mv
• Noise:=50Mv
• Protection of power supply: circuit-breaker when over voltage ;circuit-breaker when over flow ;circuit-breaker when short circuit
• Operating Temperature: 0?~+50?
• StorageTemperature: -20?~+85?
• Relative Humidity: 5%~95%
