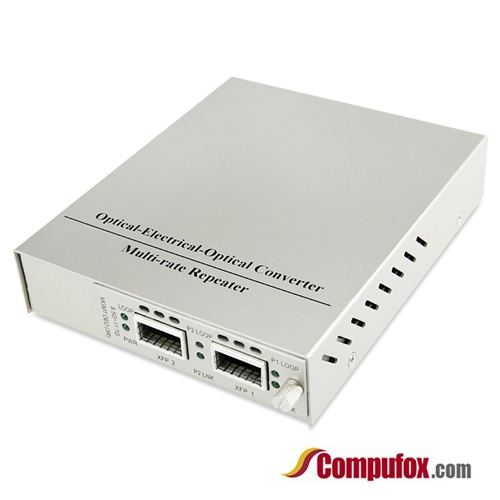

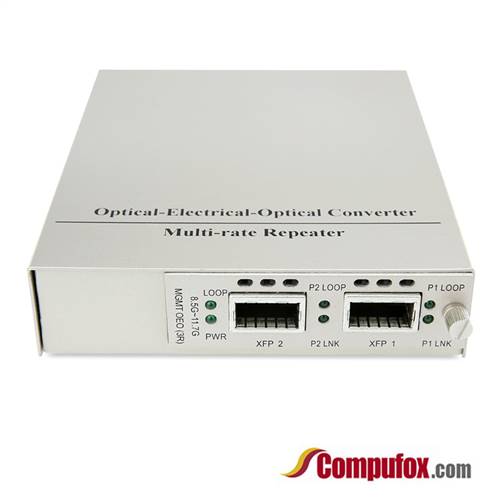

his 10G Media Converters transparently connect 10 Gigabit Ethernet
links over multimode or single mode fiber. Each 10GbE Media Converter
comes with two pluggable transceiver ports that support fiber to fiber,
copper to fiber or copper to copper media conversion.
Fiber to Fiber and Copper to Fiber conversion is achieved by inserting XFP or SFP+ optical transceivers that support multimode and single-mode fiber, including CWDM/DWDM wavelengths. Copper to copper is achieved by inserting SFP+ Direct Attach Cable (DAC), also known as twinax.
The
empty transceiver ports on the 10G Media Converters allow for flexible
network configurations to meet any requirement using a variety of 10G
transceivers supplied by Compufox, Cisco, HP or other manufacturers of MSA
compliant
SFP+ and XFPs. You can use these products to convert:
- SFP+ to SFP+
- XFP to XFP
- XFP to SFP+
The
10 Gigabit Ethernet to Fiber Converters provide an economical path to
extend the distance of an existing 10GbE link. Network Administrators
can "see-everything" with Compufox's advanced features such as Smart Link
Pass-Through, Fiber Fault Alert, a built-in Link Test capability and
Loopback. This allows for more efficient trouble-shooting and less
on-site maintenance.
Features
- Fiber to Fiber, copper to fiber and copper to copper conversion
- Uses a variety of 10G transceivers supplied by Compufox, Cisco, HP or other MSA compliant SFP+ and XFPs
- Advanced features –Smart Link Pass-Through, Fiber Fault Alert, Built-in Link Test Generator and Loopback
- Support for Power Level 1,2,3 as well as high-power Level 4 XFPs
- Optical signal regeneration: 3R (re-amplify, reshape, and retime)
- Support Jumbo Frame
- Transparent Transport and very low delay
- Support ITUT prescribed DWDM/CWDM wavelength
- Support DMI function for SFP+/XFP fiber module
- Support Loopback test function
- Support Web management
- Full State Led display
- Easy installation
Specifications
|
Transmission Datarate
|
10Gb/s ( 9.95Gb/s-11.35Gb/s )
|
|
Protocols
|
IEEE802.3ae (10Gbase-SR/LR/ER/ZR/LRM)
|
|
Access Type
|
10G LAN/ 10G WAN
|
|
Interface
|
XFP To XFP
|
|
Transmission Distance
|
Up to 80Km
|
|
Maximum Packet
|
14,880,950/s
|
|
Network Management
|
SFP+ or XFP fiber module detection
SFP+ or XFP fiber module DMI function ( Temperature , Voltage , Optical power
)
Link status detector
Enable/Disabled Loopback test function
Rate select ( 10Gbase-Lan or Wan )
|
|

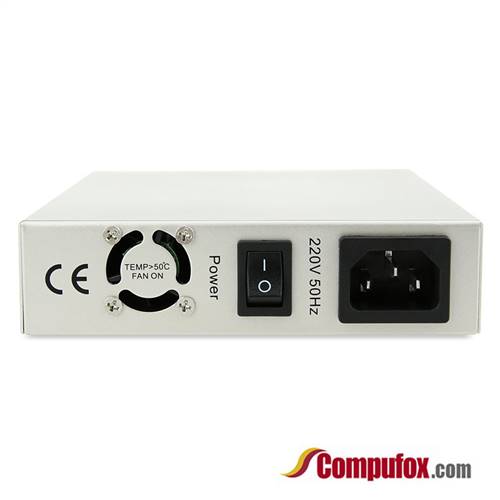

Power Supply
|
Standalone: AC 110V~260V or DC -48V
Power consumption: =6W
|
|
Work Environment
|
Operating Temp: 0~ 50 ?
Storage Temp: -10~ 70 ?
Humidity: 5%~90% ( non-condensing )
|
Applications
1. Extend the network distance of 10 Gigabit Fiber Links
Create a 10 Gigabit Ethernet fiber link that can extend up to 160km.
2. Extend the network distance between two 10 Gigabit Fiber Switches
Two
10 Gigabit Mode Media Converters can extend the distance between 10
Gigabit Multimode Switches across a fiber link up to 80km in length.
3. Convert one 10G Ethernet media to another
Convert
your 10G SFP+ Direct Attach (Twinax) to multimode or single mode fiber.
Ideal for large data centers and Co-Location applications where the
distance required to connect top of rack switches exceeds the 100 meter
limitation of 10G copper.
