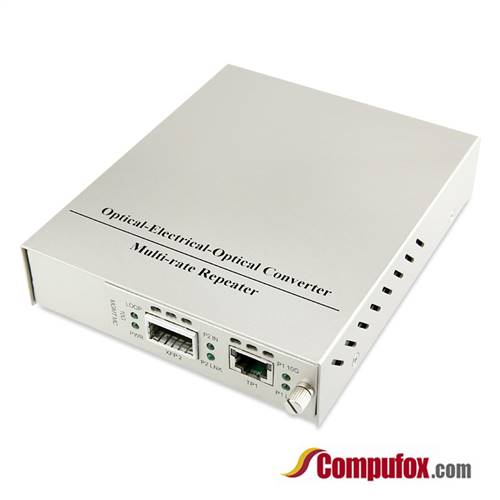

This is a high-performance 10G optical media converter , Using
Optical - Electrical wavelength conversion, realize the optical signal
equilibrium amplification, clock extraction and optical regeneration,
and with WDM (DWDM/CWDM) technology, can achieve optical signals
transmit in a single fiber by single or multiple way over a long
distance. On the existing network infrastructure, it can quickly improve
the communication capacity, expand the bandwidth, while using low cost
and high cost-effective solutions to manage and operate the system, easy
operation and maintenance.
Features
- Support Jumbo Frame
- Support web management
- Transparent Transport and very low delay
- Uses a variety of 10G transceivers supplied by Compufox, Cisco, HP or other MSA compliant SFP+ and XFPs
- Support ITUT prescribed DWDM/CWDM wavelength
- Support Loopback test function
- Support hot plugging
- Full State Led display
- Supports auto MDI/MDIX function
- Status LED for easy monitoring of device status
- FCC Class A & CE approved
Specifications
|
Interface
|
1 x Ethernet port (RJ45) 10GBase-Tx
1 x Optical port XFP
|
|
Optical Port
|
Transfer Distance: up to 80km
Connectors: XFP
Fiber core: 8.3um, 8.7um, 9um and10um on single mode fiber,50, 62.5 and 100um
on multi-mode fiber
|
|
Ethernet Port
|
Available speed: force 10Gbps Full-Duplex and
Half-Duplex auto-negotiation
Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing
|
|
Standard
|
IEEE802.3an (10Gbase-T)
IEEE802.3ae (10Gbase-SR/LR/ER/ZR)
|
|

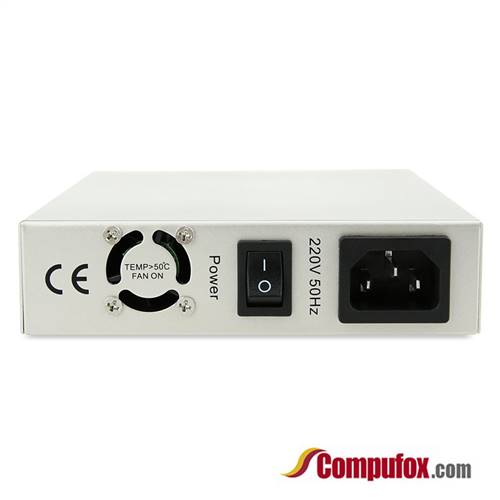

Power Supply
|
AC 110V~260V
|
|
Physical Characteristics
|

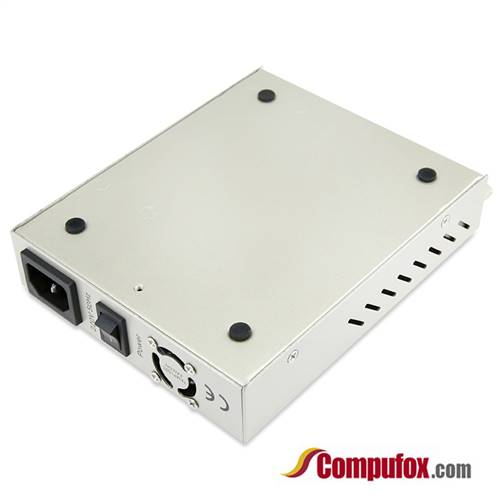

Housing: Metal enclosure
Dimensions: 156 x 128 x 32mm
Weight: 0.75kg
|
|
Environmental Limits
|
Operating Temperature: 0°Cto 50°C
Storage Temperature: -20°Cto 70°C
Operating Humidity: 10% to 90% RH
Storage Humidity: 5% to 90% RH
|
|
Agency Approvals
|
FCC Part 15 of Class A & CE approved
|
Applications
1. Convert one 10G Ethernet media to another
Convert your 10GBaseT copper link
to multimode or single mode fiber. Ideal for large data centers and
Co-Location applications where the distance required to connect top of
rack switches exceeds the 100 meter limitation of 10G copper.
