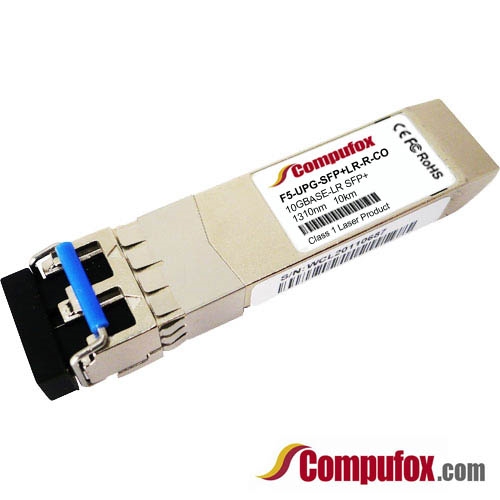

F5-UPG-SFP+LR-R | F5 Networks Compatible 10G SFP+ Optical Transceiver
F5-UPG-SFP+LR-R | F5 Networks Compatible 10G SFP+ Optical Transceiver

Our Price: $25.00

Warranty: 1 Year Warranty


Free Shipping
Product Code: F5-UPG-SFPPLUSLR-R-CO


Compatibility: 		Please input the model of the switch or router on which you will install this transceiver

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description Datasheet

F5 Networks F5-UPG-SFP+LR-R Compatible 10GBASE-LR SFP+ Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM).

10GBase-SR Features

Form Factor SFP+

Data Rate 10G

Wavelength 1310nm

Cable Distance* 10km

Connector Duplex LC

Cable Type SMF

Transmitter Type DFB

Receiver Type PIN

TX Power -8.2~0.5dBm

Receiver Sensitivity <-14.4dBm

Power Budget 6.2dB

Receiver Overload 0.5dBm

Power Consumption ≤1W

Extinction Ratio >3.5dB

DDM/DOM Yes

Commercial Temperature 0 to 70°C

* Minimum cabling distance for LR modules is 2m, according to the IEEE 802.3ae.
