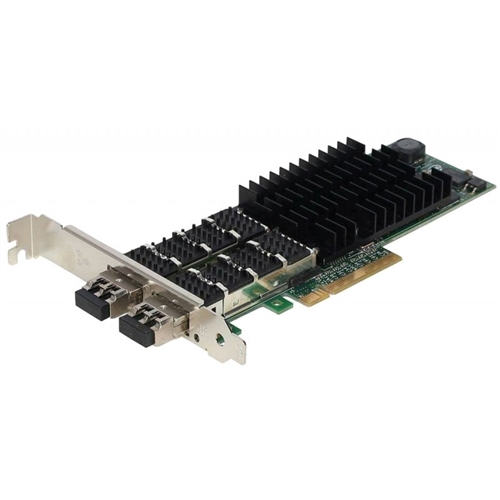

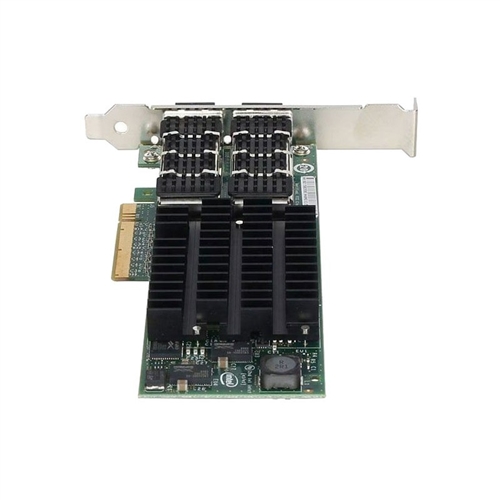

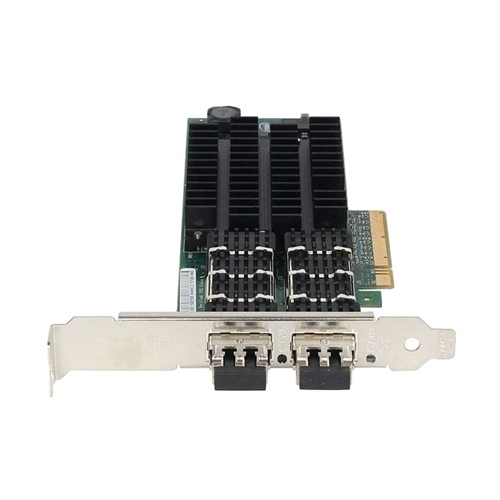

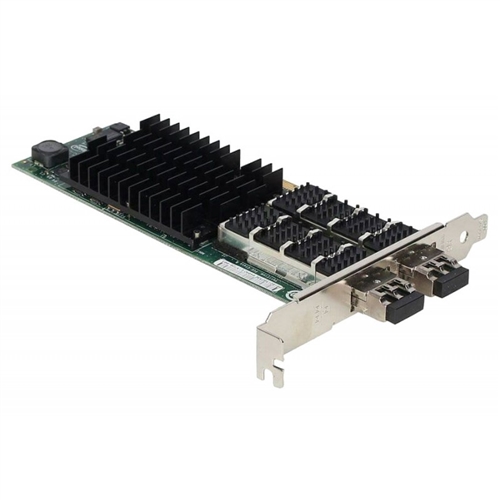

Intel 10 Gigabit XF SR Dual Port Server Adapter, Dual Port, LC MMF, 10GbE, PCIe, 82598EB.
Based on the Intel 82598EB 10 Gigabit Ethernet controller, the
next-generation Intel 10 Gigabit XF SR Dual Port Server Adapters
EXPX9502AFXSR are designed to meet the throughput and latency
requirements of bandwidth-hungry applications, while offering a very low
power envelope for energy efficiency. Ideal for slot-constrained
environments, the Intel10 Gigabit XF SR Dual Port Server Adapter
provides a simplified alternative to multiple 1 Gbps
server adapters.
Features
- Intel 82598EB 10 Gigabit Ethernet Controller
- Low profile
- Load balancing on multiple CPUs
- Intel I/O Acceleration Technology (Intel I/OAT)
- iSCSI remote boot support
- MSI-X support
- Virtual Machine Device queues1 (VMDq)
- Low latency
- Optimized queues: 32 Transmit (Tx) and 64 Receive (Rx) per port
- Compatible with x4, x8, and x16 standard and low-profile PCI Express slots
- Support for most Network Operating Systems (NOS)
- Remote management support
- Multi-mode fiber 62.5/50 µm
- RoHS compliant, lead-free technology
- Intel PROSet Utility for Microsoft Windows Device Manager
- Intel backing
Specifications
- Product Name: Intel 10 Gigabit XF SR Dual Port Server Adapter
- Product Code: EXPX9502AFXSR
- Market Segment: Server
- Bracket Height: Low-Profile (LP) / Full-Height (FH)
- Connectors: IEEE standards/network topology 10GBASE-SR two LC fiberoptic connector
- Cabling: Multi-mode fiber (62.5 µm or 50 µm)
- Data rate(s) supported per port: 10 Gigabit
- Bus type: PCI Express 2.0
- Bus width: x8 lane PCI Express, operable in x4, x8, x16 slots
- Bus speed (x8, encoded rate): 20 Gbps uni-directional; 40 Gbps bi-directional
- Interrupt levels: INTA, MSI, MSI-X
- Hardware certifications: FCC B, UL, CE, VCCI, BSMI, CTICK, MIC
- Controller-processor: Intel 82598EB
- Typical power consumption: 14W (1.17A @ 12V)
- Operating temperature: 0° C to 55° C (32° F to 131° F) with 150 LFM forced-air flow (linear feet per minute)
- Storage temperature: -40° C to 70° C (-40° F to 158° F)
- Storage humidity: 90% non-condensing relative humidity at 35° C
- LEDs: 2, LINK (solid), and ACTIVITY (blinking)
- Physical Dimensions
- Length: 16.74 cm (6.59 in)
- Width: 6.89 cm (2.71 in)
- Height of end bracket
- PCI Express standard, 12 cm (4.725 in);
- PCI Express low-profile, 7.92 cm (3.12 in)
|
|
This EXPX9502AFXSR is 100% genuine Intel product.
It won't have any compatibility problem with your Intel devices.
And the Intel 10 Gigabit XF SR Dual Port Server Adapter, Dual Port, LC
MMF, 10GbE, PCIe, 82598EB is factory new with original packaging.
Buy it now and enjoy risk free purchase with fast worldwide delivery
from Compufox.com
|
|
|
|
 |
|
 |
|
