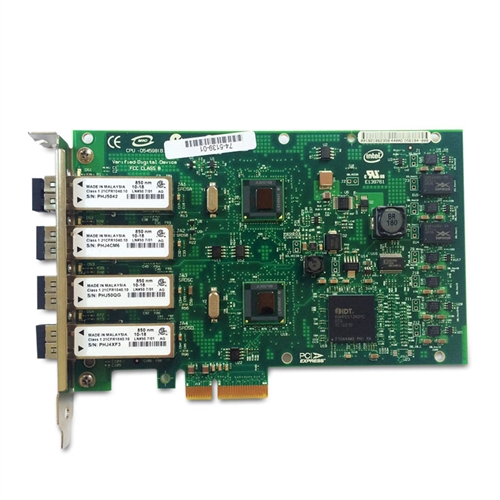

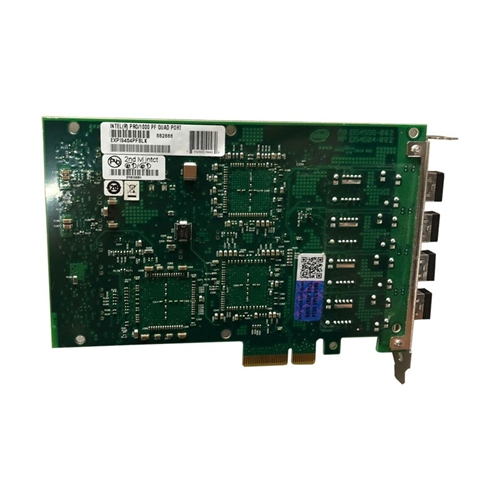

Intel PRO/1000 PF Quad Port Server Adapter, LC, 1000BASE-SX multimode, PCIe, 82571GB.
The Intel PRO/1000 PF Quad Port Server Adapter improves performance
in multi-processor systems by balancing network loads across multiple
central processing units (CPUs). Additionally, the Intel PRO/1000 PF
Quad Port Server Adapter enables Intel I/O Acceleration Technology for
faster I/O processing on the new Dual-Core and Quad-Core Intel Xeon
processor-based servers.
Features
- Two Intel 82571GB Gigabit Controllers
- Load balancing on multiple CPUs
- Intel I/OAT
- Virtualization
- LC connectors
- 1000BASE-SX multi-mode fiber
- Support for most network operating systems (NOS)
- Remote management support
- RoHS compliant, lead-free technology
- Intel PROSet Utility for Windows
- Advanced cable diagnostics
- Intel backing
Specifications
- Product Name: Intel PRO/1000 PF Quad Port Server Adapter
- Product Code: EXPI9404PF
- Connectors: LC
- Ports: Quad
- IEEE standards/network topology: Ethernet 1000Base-SX
- Cabling Type: Fiber
- Cable Distance: MMF 50um up to 550m; MMF 62.5um up to 275m
- Data rate(s) supporter per port: 1 Gbps
- Bus type: PCIe v1.0a (2.5 GT/s)
- Bus width: x4 Lane PCI Express, operable in x4, x8, x16 slots
- Bus speed (x1, encoded rate): 10 Gbps uni-directional; 20 Gbps bi-directional
- Controller-processor: Intel 82571GB
- Operating temperature: 0-55° C
- LEDs: 4 (1/port, link and speed) solid and blinking
- Physical Dimensions: 6.6" x 2.4" x 0.8"
- System
Requirements: SCO OpenServer 5, Microsoft Windows 2000, Novell NetWare
5.x, SunSoft Solaris x86 8, Novell NetWare 6.x, Caldera OpenUnix 8,
Linux 2.4 or later, Microsoft Windows Server 2003 Enterprise Edition,
Microsoft Windows Server 2003 Datacenter Edition, FreeBSD 4.x
|
|
This EXPI9404PF is 100% genuine Intel product.
It won't have any compatibility problem with your Intel devices.
And the Intel PRO/1000 PF Quad Port Server Adapter, LC, 1000BASE-SX
multimode, PCIe, 82571GB is factory new with original packaging.
