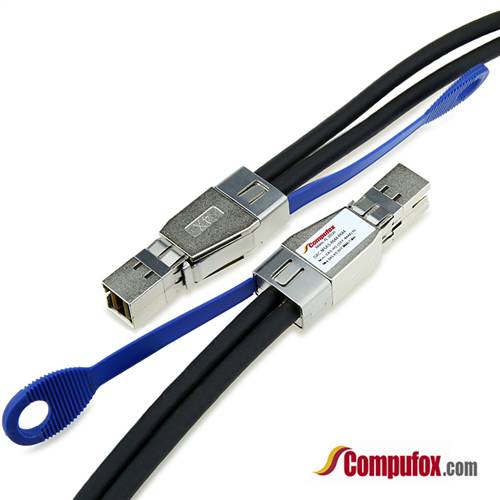

DAC-MSAS-8644-8644-P7M (Mini-SAS HD to Mini-SAS HD Cable)
Mini-SAS HD (SFF-8644) to Mini-SAS HD (SFF-8644) Cable, 7m

Our Price: $190.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships in 2 days


Product Code: DAC-MSAS-8644-8644-P7M

Specify Equipment for Connector 1

Compatibility:

Specify Equipment for Connector 2

Compatibility:

Qty:
Description

Mini-SAS HD (SFF-8644) to Mini-SAS HD (SFF-8644) Cable, 7 Meters.

Mini SAS High Density (HD) is the newest member of Serial Attached SCSI interconnect family. This new system extends passive cable distances to 20 meters, greatly increasing the length and bandwidth of standard Mini SAS cables. These cables exceed the SAS 2.1 and SFF-8644 specifications.

This External Mini-SAS HD to Mini-SAS HD cable maximize speed and port density for adapter cards, servers, and switches. This Mini SAS HD cable is guaranteed to perform at data-rates of 6.0 Gbps per lane and features a SFF-8644 pull to release connector on each end. The pull tab connector is compatible with all mini-SAS HD (SFF-8644) ports.

We can provide this cable in any length. If the length you need is not listed on our website, please feel free to contact us.
Features
  • Cable Type: External Mini-SAS HD Cable
  • Connector A: Mini-SAS HD SFF-8644
  • Connector B: Mini-SAS HD SFF-8644
  • Length: 7 Meters
  • Wire: 26AWG Copper
  • RoHS Compliant: Yes
