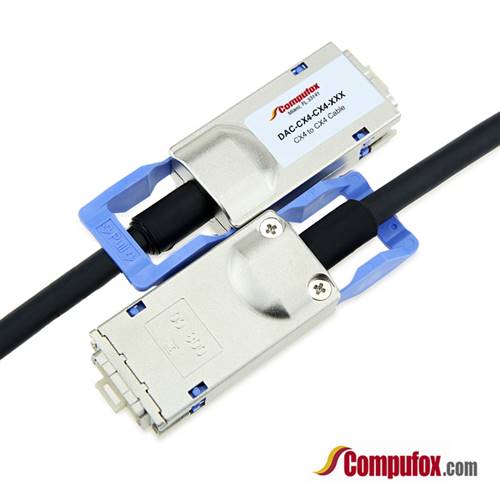

DAC-CX4-CX4-P2M (CX4 to CX4 Cable)
10GB CX4 Cable, 2m

Our Price: $75.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships in 2 days


Product Code: DAC-CX4-CX4-P2M

Specify Equipment for Connector 1

Select Brand:

Compatibility:

Specify Equipment for Connector 2

Select Brand:

Compatibility:

Qty:
Description

10GB CX4 Cable, 2 Meters.

10GBase-CX4 is an IEEE specification for 10 Gigabit over coaxial cable, intended to connect servers, switches and storage over short distances up to 15 meters/50 feet.

10GBase-CX4 or 802.3ak uses the Infiniband 4X connector to maximize signal strength and can support data transfers of up to 10 Gigabits per second, 10 times as fast as gigabit Ethernet. It combines low cost cables and equipment with high speed for short distance connections.

Applications include inter-switch, switch to server and storage CX4.

Cables are tested to a higher test standard than InfiniBand cables. Therefore, CX4 cables are backwards compatible to Infinband, but Infiniband cables do not necessarily meet CX4 test standards.

Our 10GBE CX4 Gigabit Ethernet Cables features a pull-latch ejector style connector, a very flexible jacket, and are designed to be compliant with IEEE Draft P802.3ak D5.3 standards.

We can provide this cable in any length. If the length you need is not listed on our website, please feel free to contact us.
Features
  • Cable Type: CX4 Cable
  • Connector A: CX4 Ejectors SFF-8470
  • Connector B: CX4 Ejectors SFF-8470
  • Length: 2 Meters
  • Wire: 30AWG Copper
  • RoHS Compliant: Yes
