DAC-56GQSFP-P2M (56G FDR QSFP+ Cable)

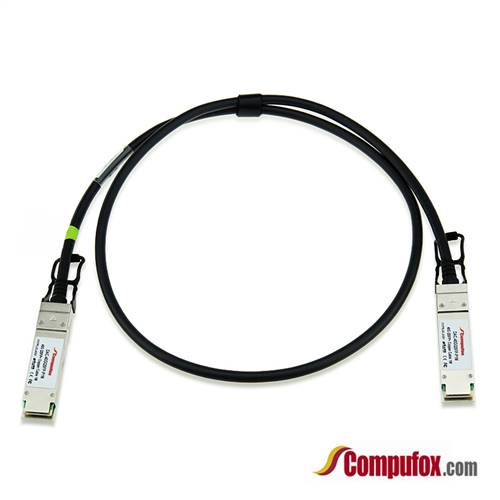

56GB QSFP+ to QSFP+ Direct Attach Cable, Copper, 2m, Passive

Our Price: $125.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships in 2 days


Product Code: DAC-56GQSFP-P2M

Specify Equipment for Connector 1

Select Brand:

Compatibility:

Specify Equipment for Connector 2

Select Brand:

Compatibility:

Qty:
Description


Compufox's 56Gb/s QSFP+ FDR DAC Cable are designed as a more cost-effective and lower power alternative to optical cable assemblies for short length interconnects between active network equipment in data center and enterprise networking Infiniband applications.

Compufox's 56Gb/s QSFP+ FDR DAC Cable assemblies are constructed using premium 100 OHM cable and feature QSFP+ (SFF-8436) connectors with pull-tab ejectors for easy connection to equipment, support up to 4x14Gb per lane for up to 56Gb, meeting or exceeding current standards specifications.

Features:

  • Compliant with SFF-8436
  • Compliant with IEEE 802.3ba
  • Up to 56Gb/s data rates
  • Ultra low crosstalk for improved performance
  • Low insertion loss
  • Tested in an end-to-end system
  • RoHS 6 Compliant

Applications:

  • Infiniband SDR/DDR/QDR and FDR interconnects
  • HPC Interconnects

Specifications

  • Cable Type: Passive 56G QSFP+ Cable
  • Connector A: QSFP+ SFF-8436
  • Connector B: QSFP+ SFF-8436
  • Length: 2 Meters
  • Wire: 30AWG Copper
  • RoHS Compliant: Yes
We can provide this cable in any length. If the length you need is not listed on our website, please feel free to contact us.
