DAC-100GQSFP28-P1M (100G QSFP28 Cable)

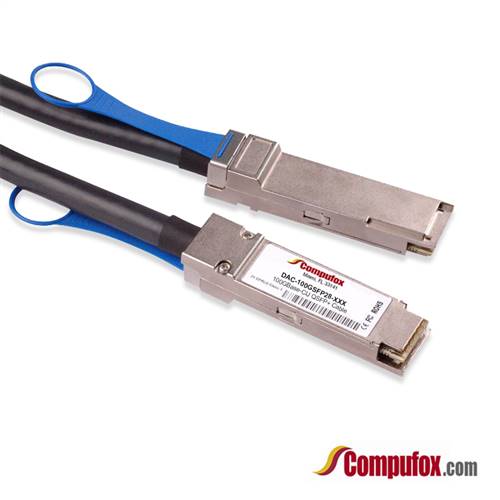

100GB QSFP28 to QSFP28 Direct Attach Cable, Copper, 1m, Passive

Our Price: $184.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships in 2 days


Product Code: DAC-100GQSFP28-P1M

Specify Equipment for Connector 1

Select Brand:

Compatibility:

Specify Equipment for Connector 2

Select Brand:

Compatibility:

Qty:
Description


Compufox's QSFP28 passive copper cable assembly features eight differential copper pairs, providing four data transmission channels at speeds up to 28Gbps per channel, and meets 100G Ethernet (4x25Gbps) and InfiniBand EDR (Enhanced Data Rate) requirements. These 100G copper cable assembly features a unique construction with individually wrapped twinax pairs, resulting in low insertion loss and low cross talk.

Applications:

  • Low EMI radiation Switches, servers and routers
  • Data Center networks
  • Storage area networks
  • High performance computing
  • Telecommunication and wireless infrastructure
  • Medical diagnostics and networking
  • Test and measurement equipment

Compliant:

  • 100G Ethernet (IEEE 802.3bj)
  • InfiniBand EDR
  • SFF-8665
  • RoHS compliant

Specifications

  • Cable Type: 100G QSFP28 Cable
  • Connector A: QSFP28
  • Connector B: QSFP28
  • Length: 1 Meter
  • Wire: 30AWG Copper
  • RoHS Compliant: Yes

We can provide this cable in any length. If the length you need is not listed on our website, please feel free to contact us.
