CAB-QSFP-CX4L | Passive Copper Direct Attach Cable
CAB-QSFP-CX4L | Passive Copper Direct Attach Cable

Alternative Views:
Our Price: $98.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: CAB-QSFP-CX4L


Compatibility: 		Please input the brand and model of the device on which you will install this cable.

Select Length*:

Qty:
Description Datasheet

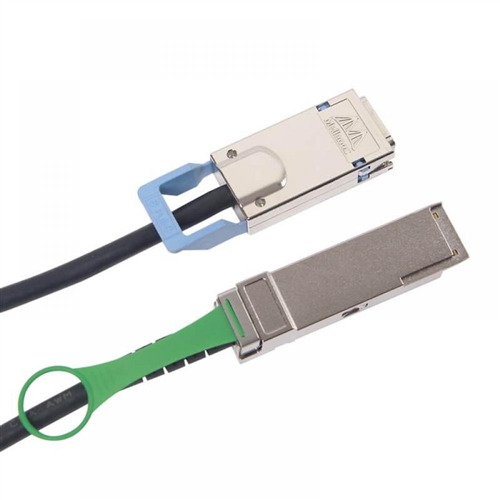

QSFP+ SFF-8436 to CX4 SFF-8470 Passive Copper Direct Attach Cable.

This QSFP to Cx4 cables have a QSFP connector and a CX4 InfiniBand connector at the two sides of the cable respectively. The Quad Small Form-Factor Pluggable Plus (QSFP) interface provides a low-profile, high-bandwidth, low power-consumption interconnect solution for HPC computer network and large data centers. They are commonly used for DDR/ SDR InfiniBand applications.
Features

  • QSFP to CX4(SFF-8470) Connetor
  • Copper Passive
  • Low power consumption
  • Excellent EMI performance
  • High reliability
  • Zinc die-cast QSFP connectors with pull-release latch
  • SFF-8470 connectors with side squeeze latch
  • High performance 8 pair wire construction
  • Low cross-talk and pair-to-pair skew
  • Fully compliant to QSFP MSA
  • RoHS Compliant
  • Wide operating temperature range:
    • Standard: 0ºC to +70ºC
    • Industrial: -40ºC to +85ºC

Applications

  • 10-Gigabit Ethernet
  • QSFP, 10GBASE-CX4 and SDR/DDR InfiniBand
