CAB-CX4S-8088 | External SAS Cable
CAB-CX4S-8088 | External SAS Cable

Alternative Views:
Our Price: $75.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: CAB-CX4S-8088


Compatibility: 		Please input the brand and model of the device on which you will install this cable.

Select Length*:

Qty:
Description Datasheet

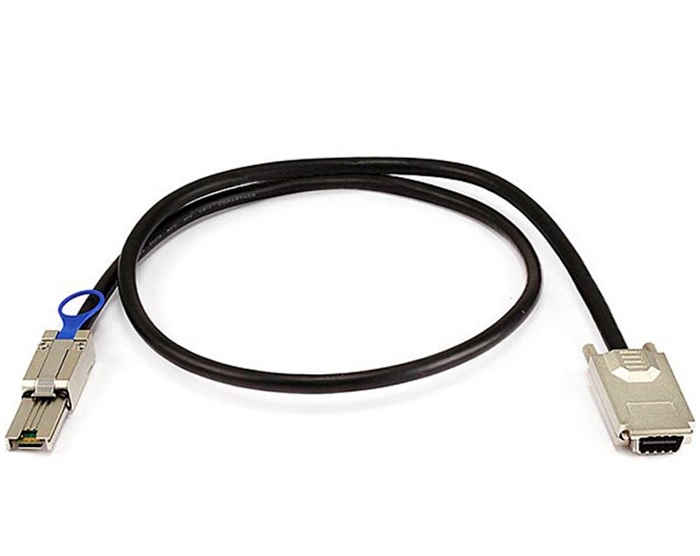

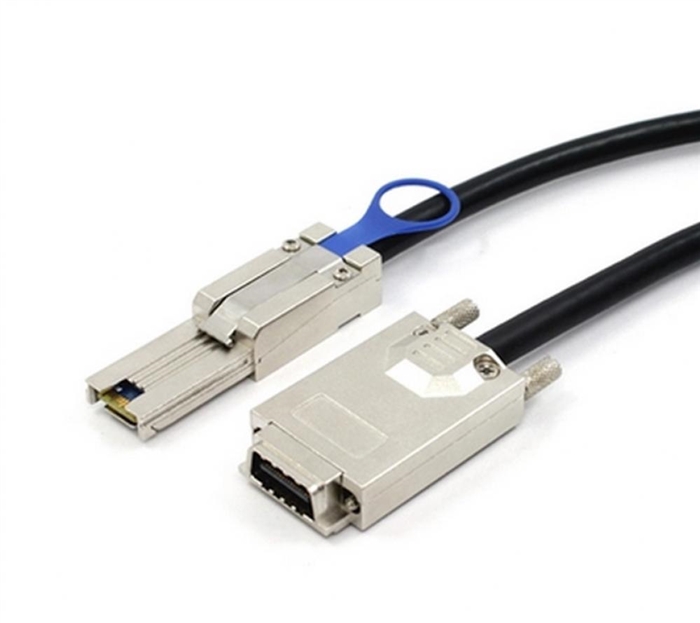

External SAS Cable, SFF-8470 (Thumbscrew) to Mini SAS SFF-8088.

SAS is the next-generation interface standard for SCSI-based systems, designed to replace the SCSI parallel interface with a much faster, more flexible, 3 Gbps serial interface while maintaining the robust nature of the SCSI command set.

“Mini-SAS" (iSAS) is the newest generation of SAS cables. It uses smaller connectors with improved performance and is ready for 6 Gbps. These are now used on many new controllers and backplanes being shipped today.

The flexibility of SAS facilitates many system-level configurations, such as workstations, blade servers, external storage arrays, SAS expanders, host bus adapters (HBAs) and RAID controllers.

Features

  • Connects a 4X host to a mini-SAS target
  • Improves point-to-point SCSI installations with increased cooling and airflow
  • InfiniBand thumbscrew connector and external mini-SAS pull-latch connector with universal key
  • Meets or exceeds existing SAS-2 standards
  • Supports data transfer speeds of up to 3 Gbps and future speeds up to 10 Gbps

Specifications

  • Connectors
    • (1) 26-Pin mini-SAS (SFF-8088)
    • (1) 34-Pin Infiniband Thumbscrew CX4 (SFF-8470)
  • Gold plated contacts
  • Durable diecast zinc housing
  • Mylar and aluminum braid shielding
  • 28 AWG
  • Matched impedance design (100 Ohms ± 10%)
  • Length: 1m to 4m
