AOC-U31-AM-AF | USB 3.1 AOC
AOC-U31-AM-AF | Active Optical Cable| Compufox.com

Alternative Views:
Our Price: $180.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships in 5-7 days


Product Code: AOC-U31-AM-AF


Select Length*:

Qty:
Description Datasheet

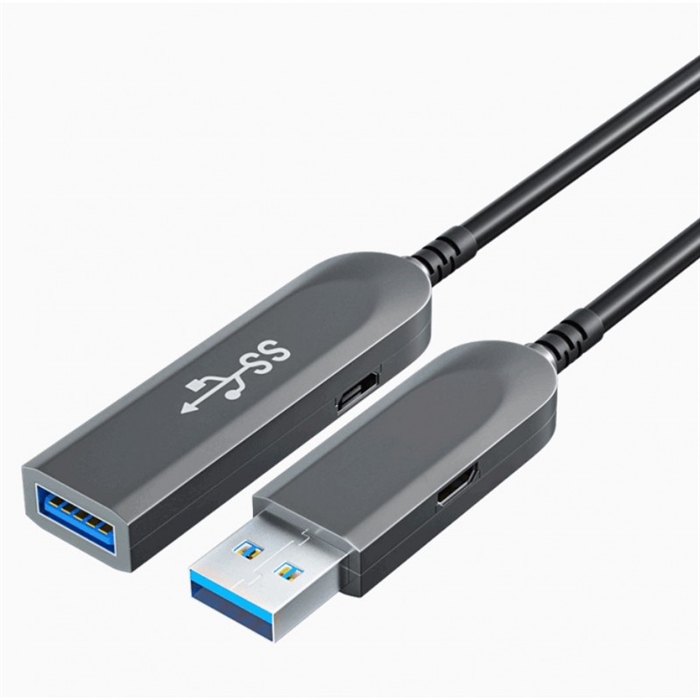

USB 3.1 Gen 2 Type-A Male to Type-A Female 10G Hybrid Active Optical Cable, Backward Compatible.
The AOC-U31-AM-AF USB 3.1 A male to A female AOC is a 10Gbps USB 3.1 GEN 2 active optical cable which is downward compatible with USB 2.0. It is designed for PC USB to peripheral devices with superior performance while providing a reliable plug-and-play user experience. It supports length up to 15m. Its suitable for applications that do not have on-site power supply. This optical fiber cable can be applicated to machine vision, Remote monitoring, etc.

Features
  • Meet USB 3.1 GEN 2 Standard , bandwidth can reach to 10Gbps super speed
  • Support length up to 15m

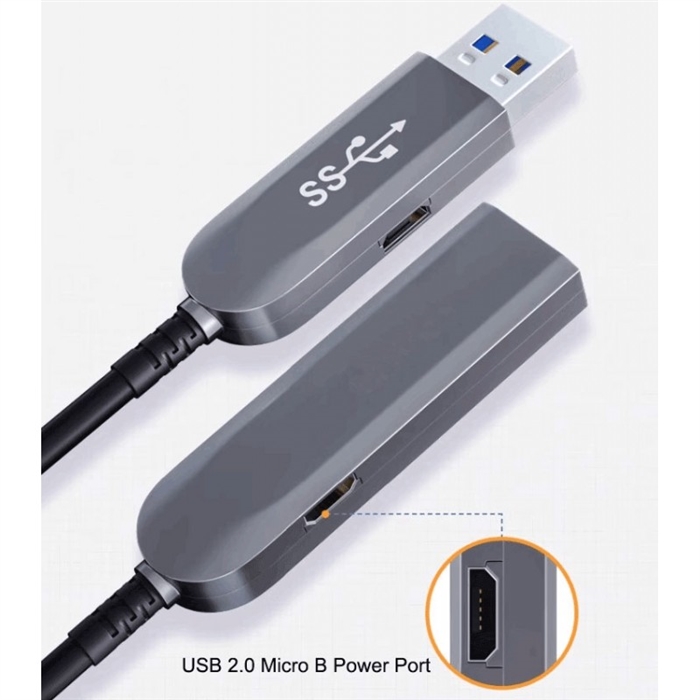

  • Support 5V 900mA max
  • Support two sides plug and play on type C connector
  • Support downward compatible with USB2.0/1.1
  • No RF interference , working stable in complex environments

Specifications
  • Maximum length: 15m
  • Connector
    • Type: A (male) / A (female)
    • Contacts: Gold plated, long-life design
  • Wire
    • Cable diameter: 4.85 mm
    • Bend radius: 40 mm static / 80 mm dynamic
    • Jacket: PVC
  • Mechanical
    • Supply voltage: 4.75 – 5.25 V
    • Power consumption: < 0.50 W (both sides)
    • Operating conditions: -20°C ~ 70°C, 0%-85% humidity
  • Safety
    • Device: CE
    • EMI / EMC: FCC Class B, CISPR 32
