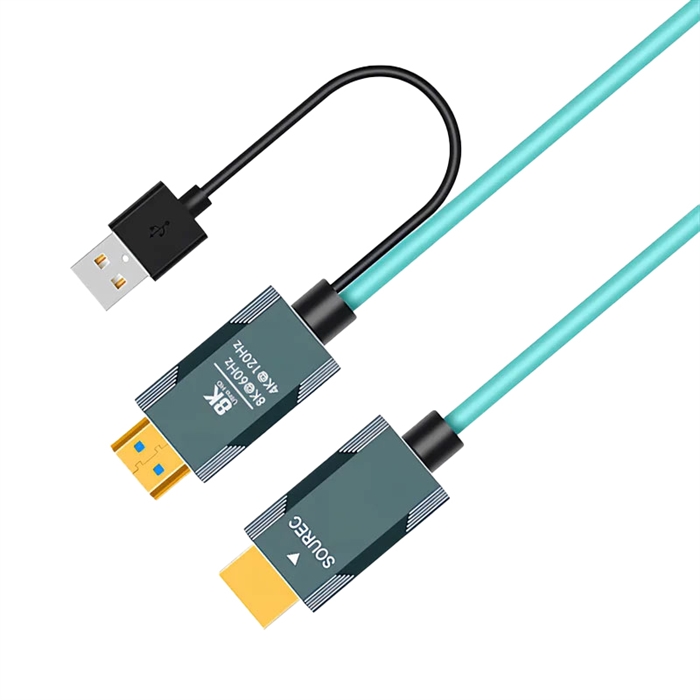

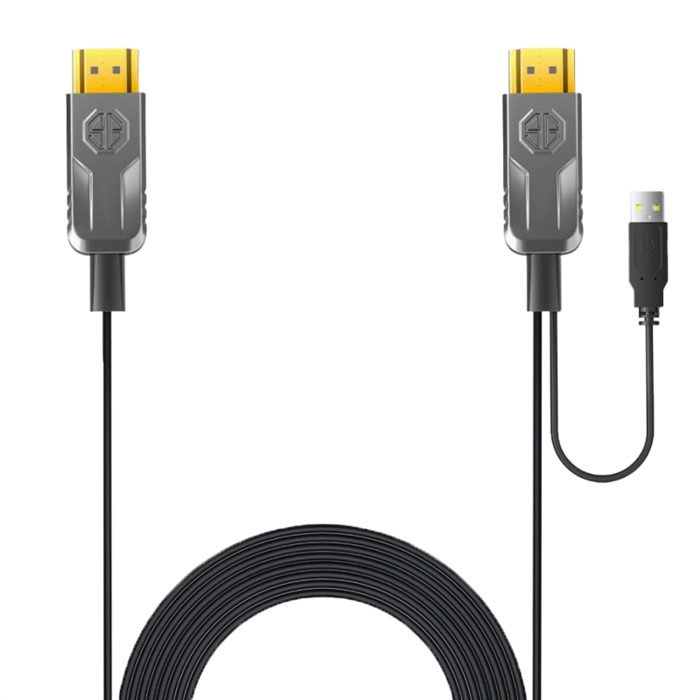

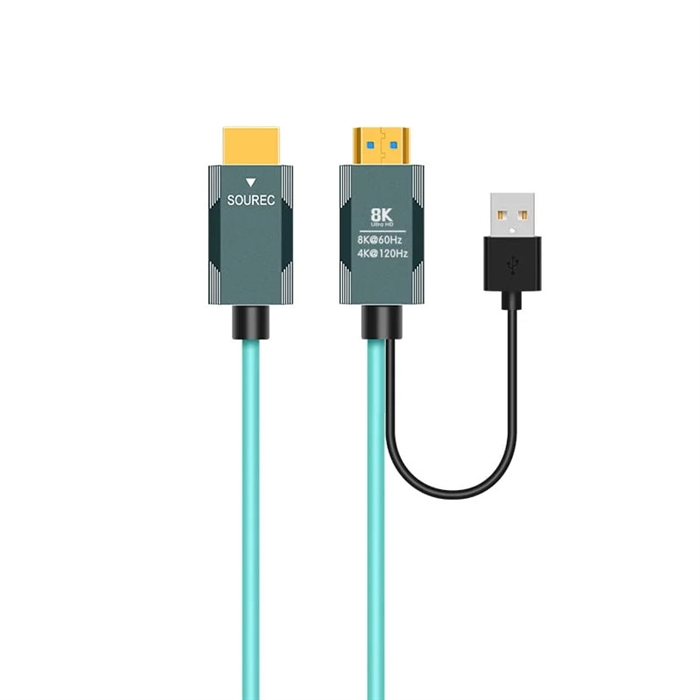

Pure Fiber Ultra High Speed 48Gbps 8K60 HDMI 2.1 Active Optical Cable.
Features
- Texas Instruments (TI) laser and Texas Instruments (TI) driver chip
- 6-core
OM3 pure optical fiber cable as the transmission conductor, no copper
cable inside, lossless transmission at the speed of light
- Detachable cable design, Modules can be disassembled and replaced
- Support HDMI2.1 standard and 10K/8K/4K120Hz HDR
- Support 100Gbps bandwidth ( optical fiber cable) and support modules version upgrade
- Support replacement of both ends of module, can be converted to HDMI/DP/DVI cable etc.
- Support 303m standard long-distance transmission (longer cables can be customized for single-featured equipment)
- Support backward compatibility with HDMI lower versions, HDCP 2.2 /2.3 and EDID automatic detection
- Support dynamic HDR/HDR10, eARC, VRR, ALLM, QMS, QFT, Dolby Atmos, Dolby Vision, DTS:X, etc.
- The diameter of cable is only 3.0mm, easy to install and does not take up space
- Excellent anti-radiation and anti-interference ability, perfectly solve EMI/RFI problems
- After
cross-testing of various brands and models equipment's which support
HDMI2.1 standard (such as Nvidia RTX 3080/3090, AMD ,Xbox Series X, LG
CX C9 B9, Samsung Q80T Q90T, computer, PS5, projector, DVD player,
laptop, TV, etc.)
- Widely used in VR virtual equipment, home
theaters, medical equipment systems, security monitoring, conference
engineering, broadcasting systems, ships, etc.
General
- Part Number: AOC-PF-HDMI21
- Product Name: Pure Fiber Ultra High Speed 48Gbps 8K60 HDMI 2.1 Active Optical Cable
- Features: 8K@60Hz, 4K@120Hz, HDR , eARC, etc.
- Length: upto 303m/1000ft
- Application: TV, Computer, Monitor, Projector, VR devices, Cameras, etc.
Connector
- Interface Type: HDMI Type A Male to Male
- Interface Version: HDMI2.1
- Interface Material: 24K Gold-plated Copper
Chipset
- Photoelectric Conversion Engine: 4 channel 850 nm VCSEL array+4 CH GaAs PD array
- Core Components: Laser + VCSEL + PD + Lens + Jumper
- Laser/Drive Chip: Texas Instruments(TI)/Texas Instruments(TI)
- Service life: ≥ 60,000+ Hours

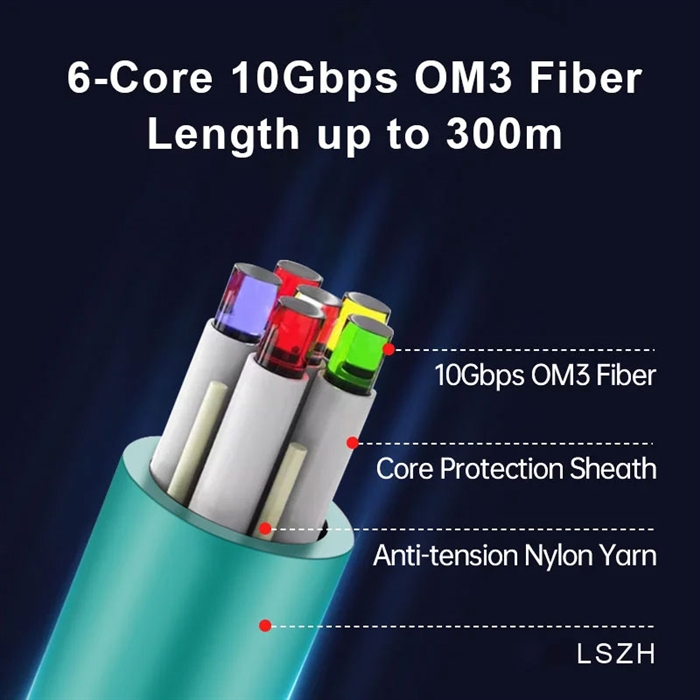

Wire
- Structure: 6*Pure Optical Fiber Core (OM3)
- Filling: Kevlar bulletproof yarn (aramid)
- Jacket: PVC(UL)
- Diameter: φ3.0mm
Housing
- Material: Zinc Alloy
- Diameter: 39*19.5*9mm
- Processing Technology: Electroplate
- Color: Gray
Function
- Resolution: 8K@60Hz, 4K@120Hz,HDR
- Bandwidth: 48Gbps(12 Gbps x 4Channel)
- Chroma Subsampling: 4:4:4/4:2:2/4:2:0
- Color Depth: 12bit
- HDCP: HDCP2.3, HDCP2.2
- eARC/ARC: Yes
- Audio
- Dolby® Atmos,DTS:X, LPCM 7.1 audio, Dolby® Digital Plus,Dolby®
- TrueHD, and DTS-HD® Master Audio™
- Other: Dynamic HDR/VRR/G-SYNC/FREESYNC/ALLM/QFT/CEC etc.
Specifications
- Bit Error Rate: ≤0.0035dB/m
- Operating Temperature: -20℃~＋70℃
- Stored Temperature: -20℃~＋60℃
- Working Humidity: ＜90％，No condensation
- Power Supply: TX:0.5W RX:0.5W, 5VDC
- Power Consumption: 250mw
