AOC-PF-DVI | DVI AOC
Pure Fiber DVI Active Optical Cable| Compufox.com

Our Price: $295.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships in 5-7 days


Product Code: AOC-PF-DVI


Select Length*:


Qty:
Description Datasheet

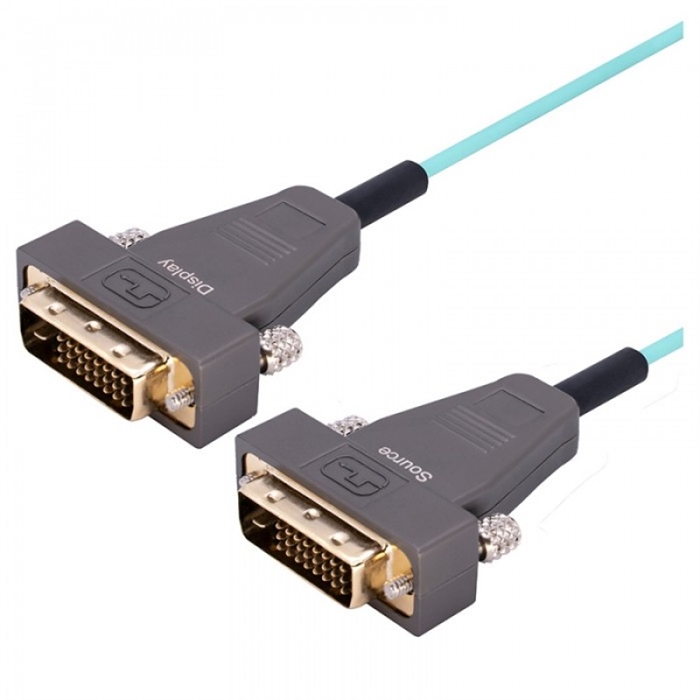

Pure Fiber DVI Active Optical Cable.

This AOC-PF-DVI is a pure fiber DVI active optical cable (AOC) with high performance, low power consumption and low cost. Using optical fiber to replace copper wire as the high-speed signal transmission medium, the AOC-PF-DVI can perfectly transmit HD image over 100 meters. Compared with the traditional copper wire, AOC-PF-DVI AOC is much longer, softer, more slim, with better signal quality and perfect EMI/EMC feature. Compared with other DVI optical fiber transmission solution, AOC-PF-DVI AOC is easy to use, and no external power supply needed.

Features
  • OD 3.0mm, long distance transmission, over 100 meters
  • Single channel DVI interface, support up to 10.2Gbps bandwidth
  • Program and store monitor’s EDID information inside of source connector
  • Thinner, lighter and softer than conventional copper cable
  • No radiation, NO EMI
  • Supports computer resolutions to 1080P and 4K2K(30P)
  • Request two side devices self-powered

Specifications
  • Cable Length: Customized, Up to 100m
  • Interface: DVI-D plug – DVI-D plug
  • Max Resolution: 1920*1080@60hz (1080P), 4K30
  • Power: No external power needed
  • Power Consumption: 250mW
  • Mechanical / Condition
  • Cable diameter: 3.0mm
  • Bend Radius (Dynamic/Static): 40mm/20mm
  • Tensile Strength (Long term/Short term): 100N/200N
  • Crush Resistance (Long term/Short term): 200N/400N
  • Operating / Storage Temp: 0 ~ 50°C/-20 ~ 70°C

Applications
  • Home Theater
  • High definition Video Meeting System
  • Medical Video System
  • High definition Video Surveillance System
  • Digital Signage and TV Wall
