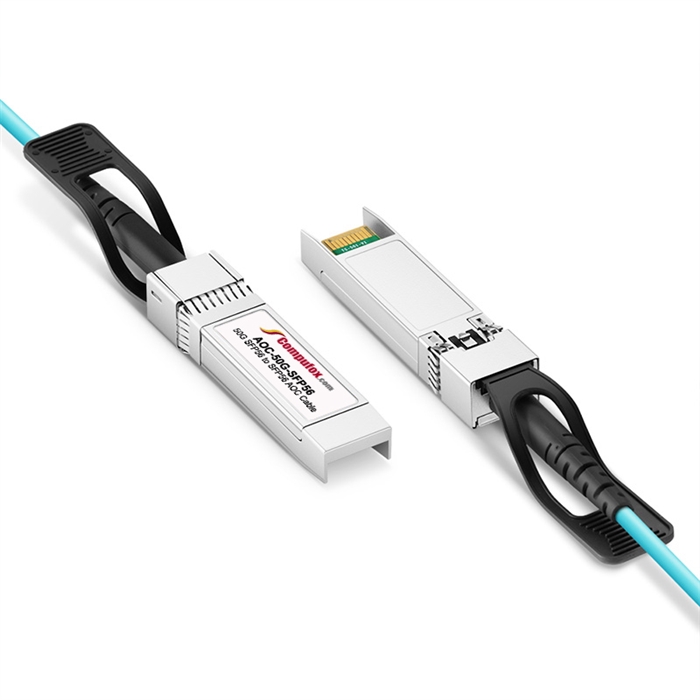

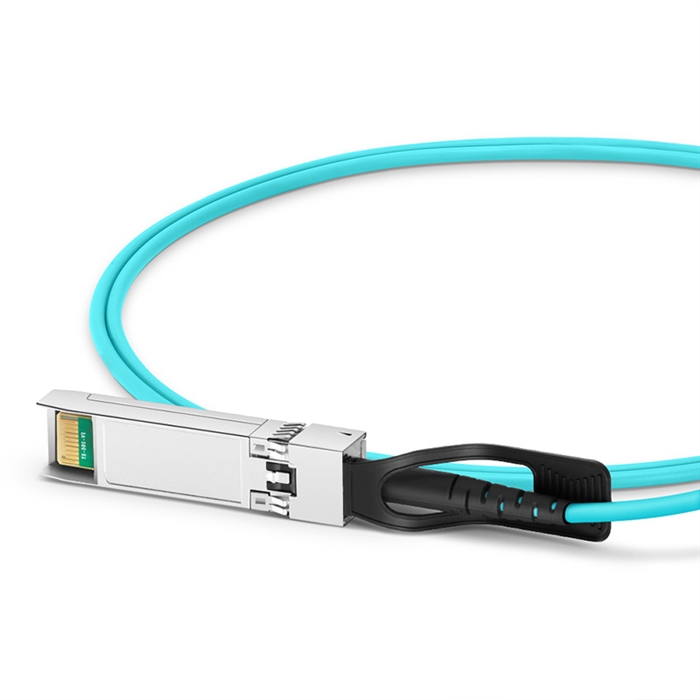

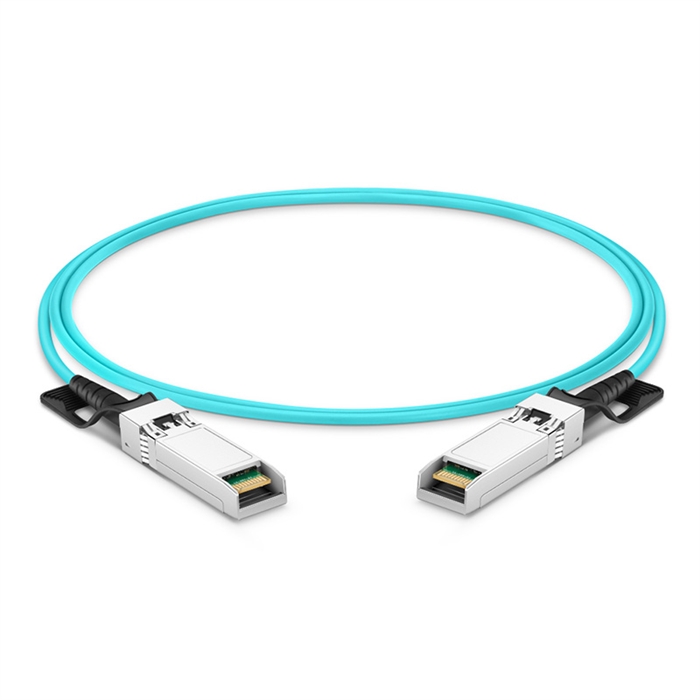

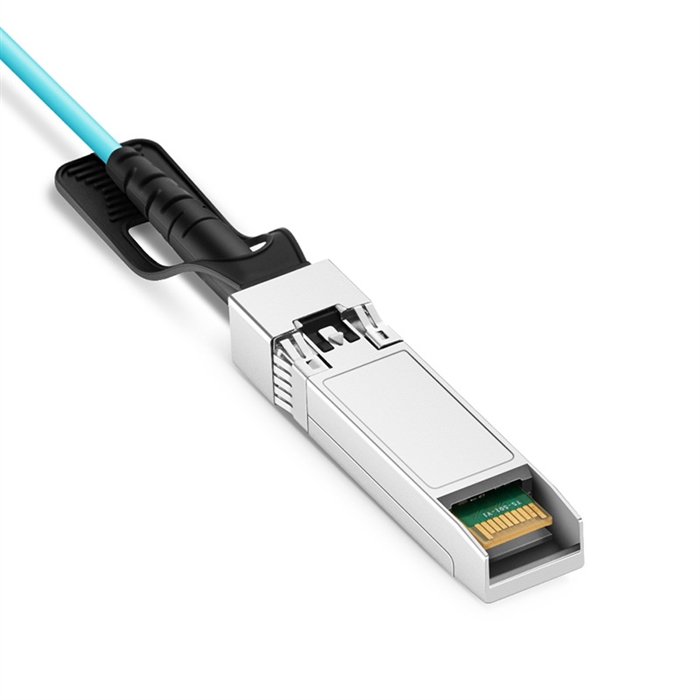

AOC-50G-SFP56 | 50G SFP56 to SFP56 AOC
AOC-50G-SFP56 | Active Optical Cable| Compufox.com



Alternative Views:
Our Price: $165.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships in 5-7 days


Product Code: AOC-50G-SFP56

Specify Equipment for Connector 1

Select Brand:

Compatibility:

Specify Equipment for Connector 2

Select Brand:

Compatibility:

Select Length*:

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description Datasheet

50G SFP56 to SFP56 AOC, 50G SFP56 Active Optical Cable.
The 50G SFP56 AOC active optical cables are designed for 50G Ethernet links reach up to 70m (OM3) or 100m (OM4) over Multi-Mode Fiber (MMF).

Features
  • Hot-pluggable SFP56 form-factor connectors
  • Full-duplex active optical cables
  • 850nm VCSEL array and PIN photo-detector array
  • Internal CDR circuits on both receiver and transmitter channels
  • Support CDR bypass
  • Compliant with SFP56 MSA and IEEE 802.3cd 50GBASE-SR
  • Data rate up to 53.125Gbps
  • Power consumption < 2W per end
  • Length up to 70m (OM3) or 100m (OM4) over MMF
  • Operating case temperature range from 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)

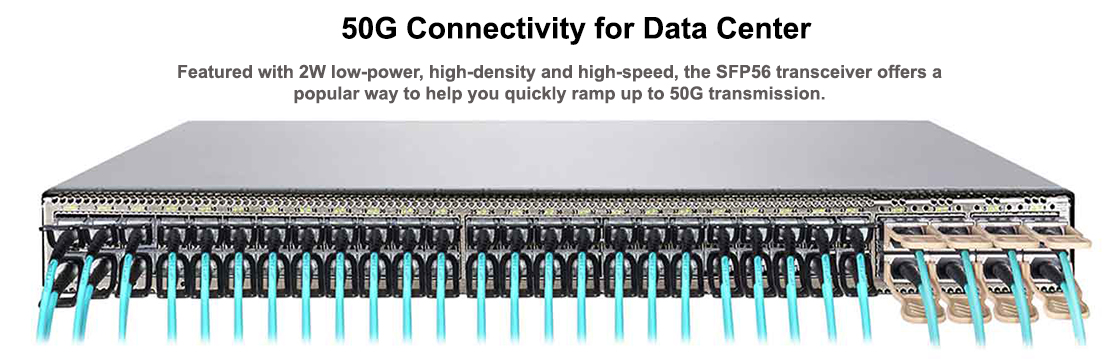

50G Connectivity for Data Center

Applications
  • 50GBASE-SR Ethernet
Connection Diagram

50G Connectivity


SPECIFICATIONS
Connector A 50G SFP56
Connector B 50G SFP56
Max Data Rate 53.125Gbps
Max Length 100m (328ft)
Wavelength 850nm
Media OM4 MMF
Temperature 0 to 70°C (32 to 158°F)
Power Consumption < 2W
