AOC-40GQ-4SFP | 40G QSFP+ to 4x 10G SFP+ AOC
AOC-40GQ-4SFP | Active Optical Cable| Compufox.com

Our Price: $95.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships in 5-7 days


Product Code: AOC-40GQ-4SFP

Specify Equipment for 40G QSFP+ Side

Compatibility:

Specify Equipment for 10G SFP+ Side

Compatibility:




Select Length*:

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description Datasheet

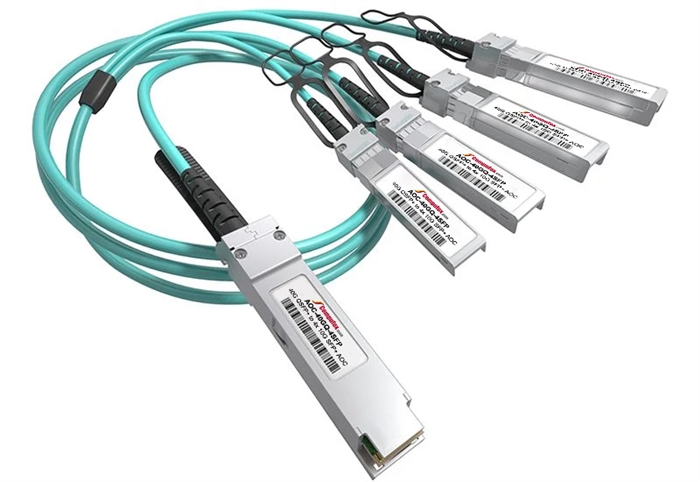

40G QSFP+ to 4x 10G SFP+ Breakout Active Optical Cable.
These QSFP+ Breakout AOC (Active Optical Cables) are a hybrid construction made with a single QSFP+ optical transceiver on one end and four independent SFP+ optical transceivers on the other end, with a fiber optic cable permanently embedded into each end (the fiber cable cannot be removed), this results in a “ready to use” QSFP+ to four SFP+ “Breakout” cable assembly, similar to passive Direct Attach Copper (DAC) cables, but with the benefit of internal active electronics to manage the host electrical interface and a longer reach, lighter weight cable.

The target application is QSFP+ based Top Of Rack (TOR) switches which need to communicate to independent SFP+ server Network Interface (NIC) cards or other legacy SFP+ based targets.

Features
  • Hot-pluggable QSFP+ and 4x SFP+ form-factor connectors
  • 4x 850nm VCSEL transmitter and PIN photo-detector receiver
  • Compliant with QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4 and IEEE 802.3ae 10GBASE-SR
  • Length up to 100m over OM3 MMF
  • Power consumption < 1.5W (QSFP+), < 0.8W (per SFP+)
  • All-metal housing for superior EMI performance
  • Operating case temperature range from 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)

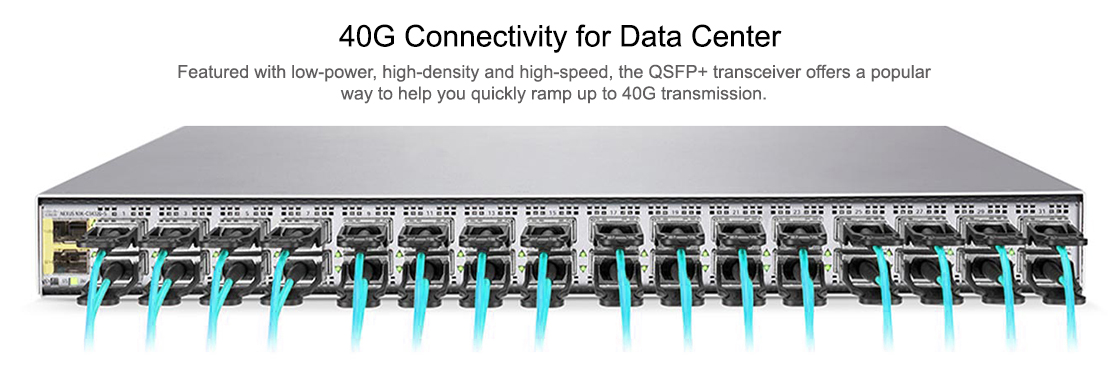

40G Connectivity for Data Center

Applications
  • 40GBASE-SR4 to 4x 10GBASE-SR Ethernet
  • InfiniBand 4x QDR/SDR/DDR
  • 4x 2G/4G/8G Fibre Channel
  • Datacom and Telecom switch or router backplane connection
  • High performance computing interconnect

Connection Diagram
40G QSFP+ to 4x 10G SFP+ AOC Connection Diagram


SPECIFICATIONS
Connector A 40G QSFP+
Connector B 4x 10G SFP+
Max Data Rate 40Gbps
Max Length 100m (328ft)
Wavelength 850nm
Media OM4 MMF
Temperature 0 to 70°C (32 to 158°F)
Power Consumption < 1.5W (QSFP+), < 0.8W (per SFP+)
