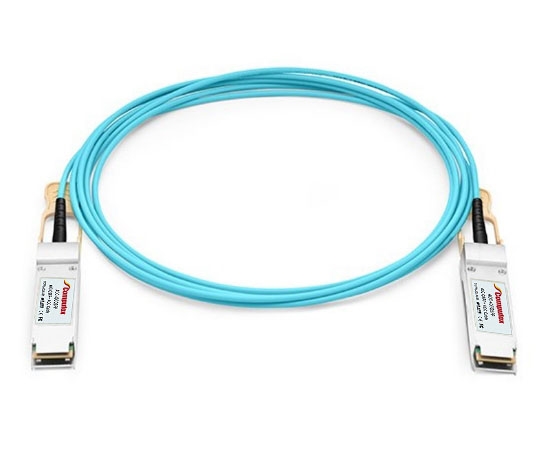

AOC-40G-QSFP | 40G QSFP+ to QSFP+ AOC
AOC-40G-QSFP | Active Optical Cable| Compufox.com

Our Price: $79.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships in 5-7 days


Product Code: AOC-40G-QSFP

Specify Equipment for Connector 1

Select Brand:

Compatibility:

Specify Equipment for Connector 2

Select Brand:

Compatibility:

Select Length*:

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description Datasheet

40G QSFP+ to QSFP+ AOC, 40G QSFP+ Active Optical Cable.

The 40G QSFP+ Active Optical Cable (AOC) is a high performance, low power consumption integrated cable for short-range multi-lane data communication and interconnect applications, supporting 40G Ethernet, fiber channel. It is compliant with the QSFP+ MSA and IEEE P802.3ba 40GBASE-SR4. It integrates four data lanes in each direction with 40 Gb/s aggregate bandwidth.

Features
  • Hot-pluggable QSFP+ form-factor connectors
  • 4 channels full-duplex active optical cables
  • 4x 850nm VCSEL array and PIN photo-detector array
  • Differential AC-coupled high-speed data interface
  • Compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4
  • Data rate up to 41.2Gbps
  • Length up to 300m over OM3 MMF
  • Power consumption < 1.5W per end
  • Operating case temperature range from 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)
40G AOC Connectivity for Data Center

Applications
  • 40GBASE-SR4 Ethernet
  • InfiniBand 4xSDR/DDR/QDR

Connection Diagrams
40G to 40G Connection Diagram

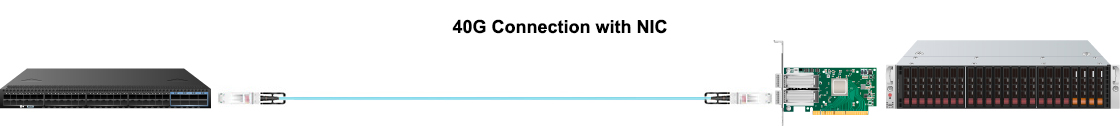

40G to 40G with NIC Connection Diagram


SPECIFICATIONS
Connector A 40G QSFP+
Connector B 40G QSFP+
Max Data Rate 41.2Gbps
Max Length 300m (984ft)
Wavelength 850nm
Media OM4 MMF
Temperature 0 to 70°C (32 to 158°F)
Power Consumption < 1.5W
