AOC-400GQ56DD-8SFP56 | 400G QSFP56-DD to 8x 50G SFP56 AOC
AOC-400GQ56DD-8SFP56 | Active Optical Cable| Compufox.com

Our Price: $1,295.00

Warranty: 1 Year Warranty
Leadtime: 4 Weeks Lead Time


Product Code: AOC-400GQ56DD-8SFP56

Specify Equipment for 400G QSFP56-DD Side

Compatibility:

Specify Equipment for 50G SFP56 Side

Compatibility:








Select Length*:

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description Datasheet

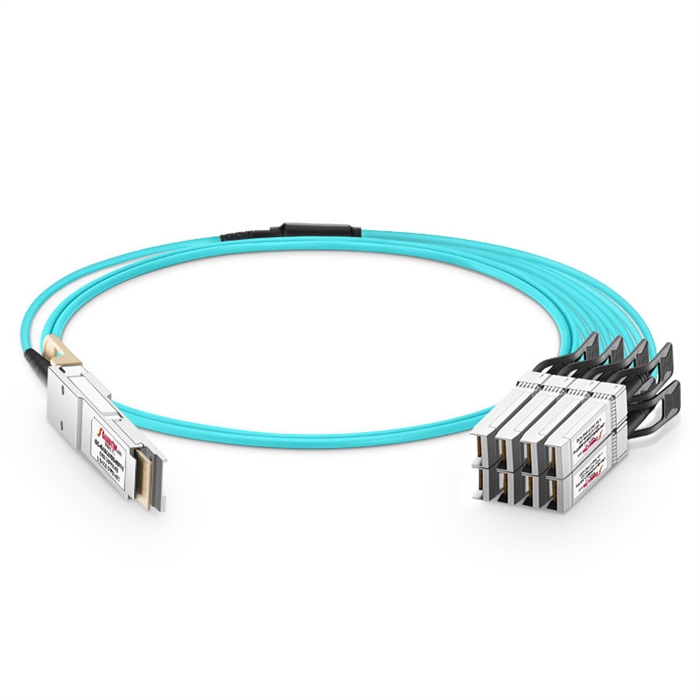

400G QSFP56-DD to 8x 50G SFP56 Breakout Active Optical Cable.
The 400G QSFP56-DD to 8x 50G SFP56 Breakout Active Optical Cable offers IT professionals a cost-effective interconnect solution for merging 400G QSFP56 DD and 53G SFP56 enabled host adapters, switches and servers.

For typical applications, users can install this splitter Active Optical cable between an available QSFP56 DD port on their 400Gbps rated switch and feed up to eight upstream 50G SFP56 enabled switches.

The QSFP56-DD to SFP56 splitter Active Optical cable features a single QSFP56 DD connector (QSFP DD MSA) rated for 400Gbps on one end and (8) SFP56 connectors (SFF-8431), each rated for 53Gb/s, on the other.

Features
  • High-density QSFP-DD and 8x SFP56 MSA-compliant connectors
  • 8 channels full-duplex active optical cables
  • 8x 850nm VCSEL array and PIN photo-detector array
  • Compliant with IEEE 802.3cd 200GBASE-SR4 and 50GBASE-SR
  • Data rate up to 425Gbps
  • Length up to 70m (OM3) or 100m (OM4) over MMF
  • Power consumption < 10W (400G QSFP56-DD), < 2W (50G SFP56)
  • Operating case temperature range from 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)
Applications
  • 400G to 8x 50GBASE-SR Ethernet
Connection Diagram
400G to 8x 50G AOC Connection Diagram


SPECIFICATIONS

Connector A

400G QSFP56-DD

Connector B

8x 50G SFP56

Max Data Rate

425Gbps (8x 53.125GGbps)

Max Length

100m (328ft)

Wavelength

850nm

Media

OM4 MMF

Minimum Bend Radius

30mm

Power Consumption

QSFP-DD <10W, SFP56 <3W

Transmitter Type

VSCEL

Receiver Type

PIN

Jacket Material

OFNP

Modulation Format

PAM4

BER

2.40E-04

Inbuilt FEC

No

Temperature

0 to 70°C (32 to 158°F)

Protocols

QSFP-DD MSA, SFP56 MSA, IEEE 802.3cd
