AOC-400GQ56DD-4Q56 | 400G QSFP56-DD to 4x 100G QSFP56 AOC
AOC-400GQ56DD-4Q56 | Active Optical Cable| Compufox.com

Our Price: $1,275.00

Warranty: 1 Year Warranty
Leadtime: 4 Weeks Lead Time


Product Code: AOC-400GQ56DD-4Q56

Specify Equipment for 400G QSFP56-DD Side

Compatibility:

Specify Equipment for 100G QSFP56 Side

Compatibility:




Select Length*:

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description Datasheet

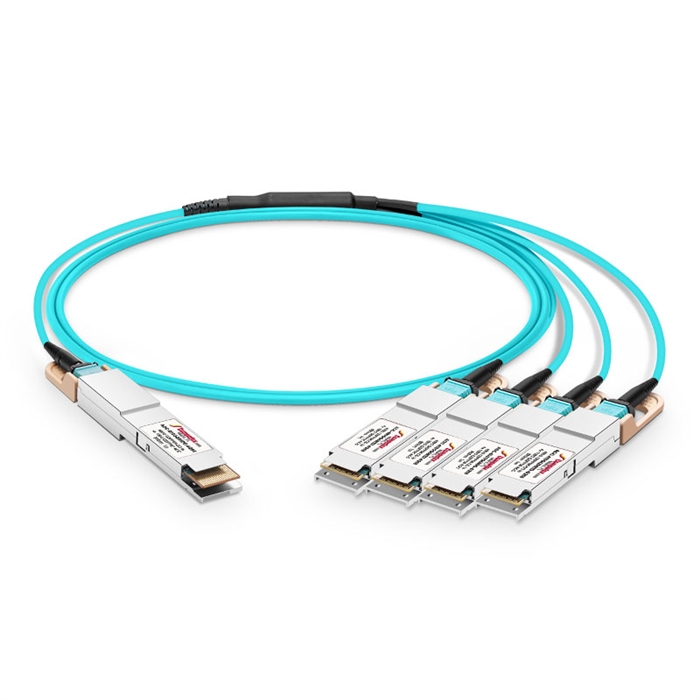

400G QSFP56-DD to 4x 100G QSFP56 Breakout Active Optical Cable.
The 400G QSFP56-DD to 4x 100G QSFP56 AOC breakout active optical cables are designed for 400G to 4x 100G Ethernet links reach up to 70m (OM3) or 100m (OM4) over Multi-Mode Fiber (MMF).

Features
  • High-density QSFP-DD and 4x QSFP56 MSA-compliant connectors
  • 8 channels full-duplex active optical cables
  • 8x 850nm VCSEL array and PIN photo-detector array
  • Compliant with IEEE 802.3cd 200GBASE-SR4 and 100GBASE-SR2
  • Data rate up to 425Gbps
  • Length up to 70m (OM3) or 100m (OM4) over MMF
  • Power consumption < 9W (400G QSFP56-DD), < 4.5W (100G QSFP56)
  • Operating case temperature range from 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)
Applications
  • 400G to 4x 100G Ethernet
Connection Diagrams

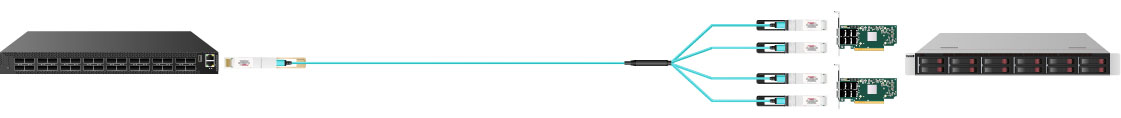

400G to 4x 100G AOC Connection Diagram



400G to 4x100G AOC Connection

SPECIFICATIONS

Connector A

400G QSFP56-DD

Connector B

4x 100G QSFP56

Max Data Rate

400Gbps

Max Length

100m (328ft)

Wavelength

850nm

Cable Type

OM3 MMF

Minimum Bend Radius

30mm

Transmitter Type

VSCEL

Receiver Type

PIN

Power Consumption

400G <12W, 100G<3.5W

Jacket Material

OFNP

CDR (Clock and Data Recovery)

TX & RX Built-in CDR

Modulation Format

8x 50G-PAM4

DDM/DOM

Yes

Temperature

0 to 70°C (32 to 158°F)

Protocols

IEEE 802.3cd, OIF-CEI-04.0, QSFP-DD MSA,
QSFP-DD-CMIS-Rev4.0, SFF-8024, IEEE 802.3bs
Annex120E

Host FEC

Pre-FEC BER 2.4E-4

Application

400G Ethernet
