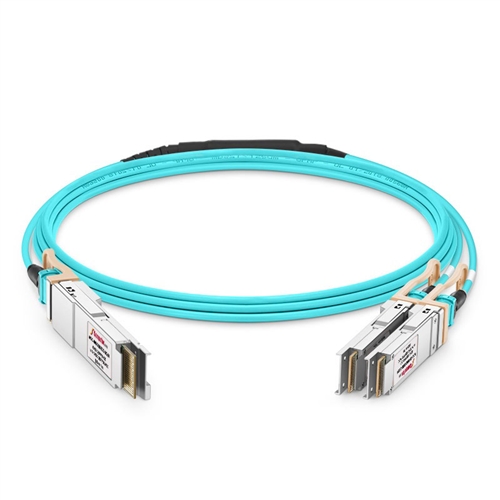

AOC-400GQ56DD-2Q56 | 400G QSFP56-DD to 2x 200G QSFP56 AOC
AOC-400GQ56DD-2Q56 | Active Optical Cable| Compufox.com



Our Price: $1,195.00

Warranty: 1 Year Warranty
Leadtime: 4 Weeks Lead Time


Product Code: AOC-400GQ56DD-2Q56

Specify Equipment for 400G QSFP56-DD Side

Compatibility:

Specify Equipment for 200G QSFP56 Side

Compatibility:


Select Length*:

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description Datasheet

400G QSFP56-DD to 2x 200G QSFP56 Breakout Active Optical Cable.
This 400G QSFP56-DD to 2x 200G QSFP56 Active Optical Splitter Cable is used in 2 X 200 Gigabit Ethernet links over OM3/OM4/OM5 multimode fiber, which provides connectivity between system units with a 400GbE connector on one side and two separate 200GbE connectors on the other two sides.

The cable connects data signals from each of the 8 MMF (Multi Mode Fiber) pairs on the single QSFP56-DD end to the dual pair of each of the QSFP56 multiport ends.

This AOC is compliant with the QSFP-DD-MSA and with 200GBASE-SR4 specification. Digital diagnostics functions are available via the I2C interface as specified by CMIS V4.0. The transceiver is RoHS 2.0 compliant and lead-free per Directive 2011/65/EU.

Features
  • High-density QSFP-DD and 2x QSFP56 MSA-compliant connectors
  • 8 channels full-duplex active optical cables
  • 8x 850nm VCSEL array and PIN photo-detector array
  • Compliant with IEEE 802.3cd 200GBASE-SR4
  • Data rate up to 425Gbps
  • Length up to 70m (OM3) or 100m (OM4) over MMF
  • Power consumption < 9W (400G QSFP56-DD), < 5W (200G QSFP56)
  • Operating case temperature range from 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)
Applications
  • 400G to 2x 200G Ethernet
Connection Diagram
400G to 2x200G AOC Connection Diagram


SPECIFICATIONS

Connector A

400G QSFP56-DD

Connector B

2x 200G QSFP56

Max Data Rate

425Gbps

Max Length

100m (328ft)

Cable Type

OM3 MMF

Wavelength

850nm

Minimum Bend Radius

30mm

Transmitter Type

VSCEL

Receiver Type

PD

Power Consumption

≤11W

Jacket Material

LSZH

CDR (Clock and Data Recovery)

TX & RX Built-in CDR

Modulation Format

8x 50G-PAM4 to Dual 4x 50G-PAM4

Temperature

0 to 70°C (32 to 158°F)

Protocols

IEEE 802.3cd, IEEE 802.3bs, QSFP-DD MSA, SFF-8024, SFF-8679, SFF-8665, CMIS 4.0, OIF-CEI-04.0
