AOC-400G-QSFP56DD | 400G QSFP56-DD to QSFP56-DD AOC
AOC-400G-QSFP56DD | Active Optical Cable| Compufox.com

Our Price: $995.00

Warranty: 1 Year Warranty
Leadtime: 4 Weeks Lead Time


Product Code: AOC-400G-QSFP56DD

Specify Equipment for Connector 1

Select Brand:

Compatibility:

Specify Equipment for Connector 2

Select Brand:

Compatibility:

Select Length*:

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description Datasheet

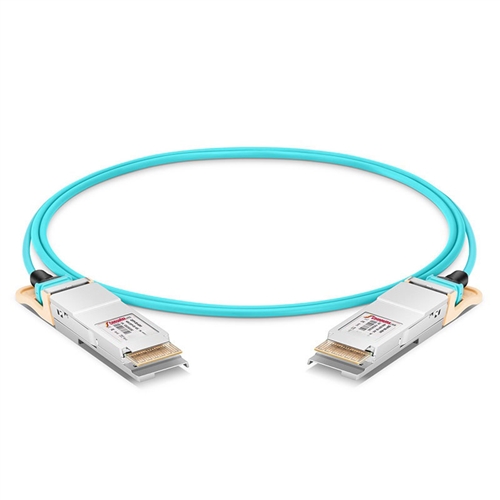

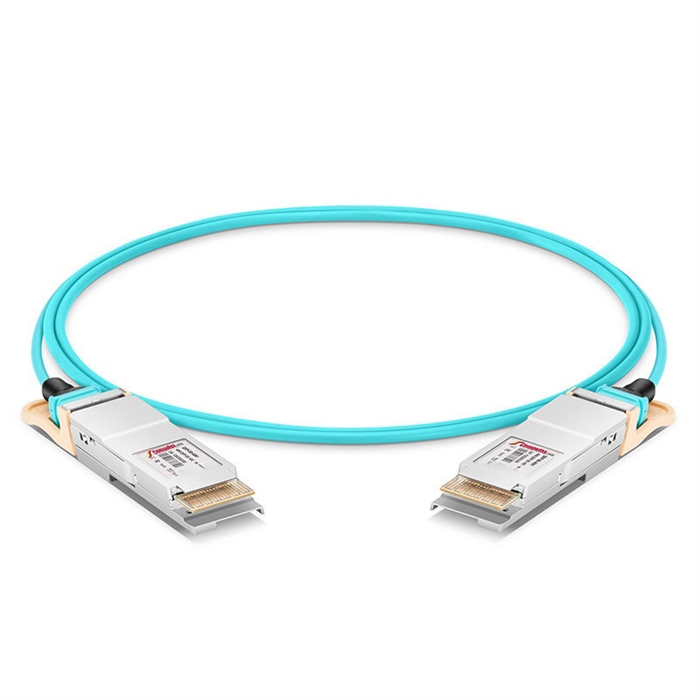

400G QSFP56-DD to QSFP56-DD AOC, 400G QSFP56-DD Active Optical Cable.

The 400G QSFP56-DD AOC is a Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP Double Density for 2x200 Gigabit Ethernet Applications. This AOC is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates eight data lanes in each direction with 8x 26.5625GBd. Each lane can operate at 53.125Gbps up to 70m using OM3 fiber or 100m using OM4 fiber with FEC.

These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 76 contact edge type connector.

Features
  • High-density QSFP-DD MSA-compliant connectors
  • 8 channels full-duplex transceiver modules
  • Transmission data rate up to 53Gbps per channel
  • 8x 53Gbps PAM4 transmitter and PM4 receiver
  • 8 channels 850nm VCSEL array
  • 8 channels PIN photo detector array
  • Internal CDR circuits on both receiver and transmitter channels
  • Power consumption <10W per end
  • Hot Pluggable QSFP DD form factor and Compliant with CMIS
  • Maximum link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF with FEC
  • Built-in digital diagnostic functions
  • Operating case temperature 0°C to +70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)
Applications
  • 400G (2x 200GBASE-SR4) Ethernet
Connection Diagram
Direct Connection for 400G QSFP-DD AOC

SPECIFICATIONS

Connector A

400G QSFP-DD

Connector B

400G QSFP-DD

Max Data Rate

400Gbps

Max Length

100m (328ft)

Wavelength

850nm

Media

OM4 MMF

Minimum Bend Radius

30mm

Transmitter Type

VSCEL

Receiver Type

850nm PD

Power Consumption

≤11W per end

Jacket Material

LSZH

CDR (Clock and Data Recovery)

TX & RX Built-in CDR

Modulation Format

PAM4

DDM/DOM

Yes

Temperature

0 to 70°C (32 to 158°F)

Protocols

IEEE 802.3cd, OIF-CEI-04.0, QSFP-DD MSA, QSFP-DD-CMIS-rev4p0

Inbuilt FEC

No

Application

8x 50G-PAM4


400G QSFP-DD AOC Diagram

AOC Cable Lower Power Consumption
