AOC-200GQ28DD-2Q28 | 200G QSFP28-DD to 2x 100G QSFP28 AOC
AOC-200GQ28DD-2Q28 | Active Optical Cable| Compufox.com

Our Price: $395.00

Warranty: 1 Year Warranty
Leadtime: 4 Weeks Lead Time


Product Code: AOC-200GQ28DD-2Q28

Specify Equipment for 200G QSFP28-DD Side

Compatibility:

Specify Equipment for 100G QSFP28 Side

Compatibility:


Select Length*:

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description Datasheet

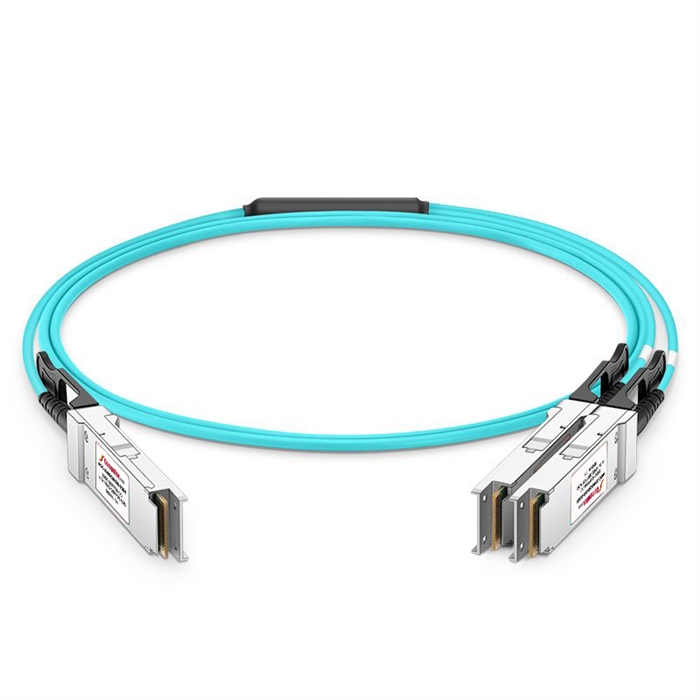

200G QSFP28-DD to 2x 100G QSFP28 Breakout Active Optical Cable.
The 200G QSFP-DD To 2x 100G QSFP28 breakout Active Optical Cable is designed for short-range multi-lane data communication and interconnect applications. It integrates eight data lanes in each direction with 8x 25.78125Gbps bandwidth. Each lane can operate at 25.78125Gbps up to 70m using OM3 fiber or100 m using OM4 fiber.

These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 76 contact edge type connector. The optical interface uses a 24 fiber MTP (MPO) connector.

Features
  • High-density QSFP-DD and 2x QSFP28 MSA-compliant connectors
  • 8 channels full-duplex active optical cables
  • 8x 850nm VCSEL array and PIN photo-detector array
  • Internal CDR circuits within receiver and transmitter data paths
  • Support CDR bypass
  • Compliant with QSFP-DD MSA, CMIS and IEEE 802.3bm 100GBASE-SR4
  • Data rate up to 206.25Gbps
  • Length up to 70m (OM3) or 100m (OM4) over MMF
  • Power consumption < 4W (200G QSFP28-DD), < 2.5W (100G QSFP28)
  • Operating case temperature range from 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)

Applications
  • IEEE 802.3cd 200GBASE SR8
  • IEEE 802.3bm 100GBASE SR4

Connection Diagram

200G QSFP28-DD to 2x 100G QSFP28 AOC Connection Diagram


SPECIFICATIONS
Connector A 200G QSFP28-DD
Connector B 2x 100G QSFP28
Max Data Rate 206.25Gbps
Max Length 100m (328ft)
Wavelength 850nm
Media OM4 MMF
Temperature 0 to 70°C (32 to 158°F)
Power Consumption < 4W (200G QSFP28-DD), < 2.5W (100G QSFP28)

<
