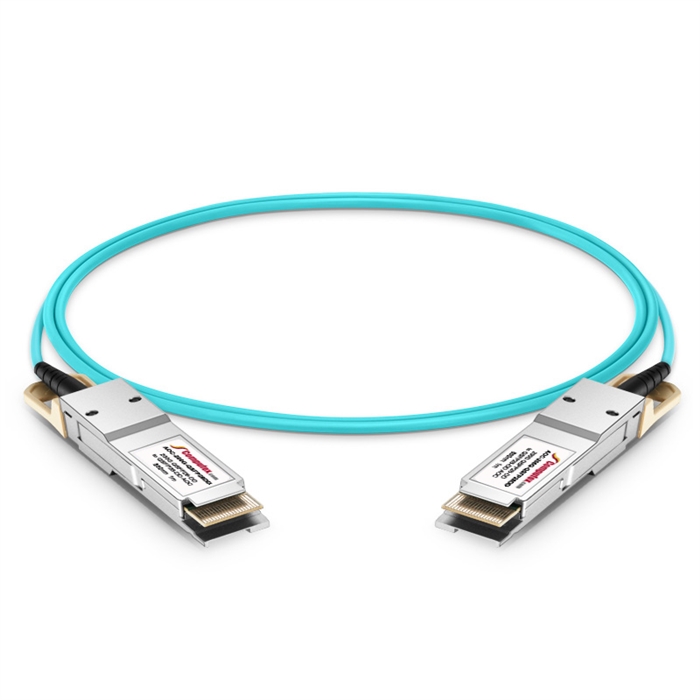

AOC-200G-QSFP28DD | 200G QSFP28-DD to QSFP28-DD AOC
AOC-200G-QSFP28DD | Active Optical Cable| Compufox.com

Our Price: $625.00

Warranty: 1 Year Warranty
Leadtime: 4 Weeks Lead Time


Product Code: AOC-200G-QSFP28DD

Specify Equipment for Connector 1

Select Brand:

Compatibility:

Specify Equipment for Connector 2

Select Brand:

Compatibility:

Select Length*:

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description Datasheet

200G QSFP28-DD to QSFP28-DD AOC, 200G QSFP28-DD Active Optical Cable.

The 200G QSFP28-DD AOC - active optic cables are designed for 200G (2x 100GBASE-SR4) Ethernet interconnect links reach up to 70m (OM3) or 100m (OM4) over Multi-Mode Fiber (MMF).

Features
  • High-density QSFP-DD MSA-compliant connectors
  • 8 channels full-duplex active optical cables
  • 8x 850nm VCSEL array and PIN photo-detector array
  • Internal CDR circuits within receiver and transmitter data paths
  • Support CDR bypass
  • Compliant with QSFP-DD MSA, CMIS and IEEE 802.3bm 100GBASE-SR4
  • Data rate up to 206.25Gbps
  • Length up to 70m (OM3) or 100m (OM4) over MMF
  • Power consumption < 4W per end
  • Operating case temperature range from 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)

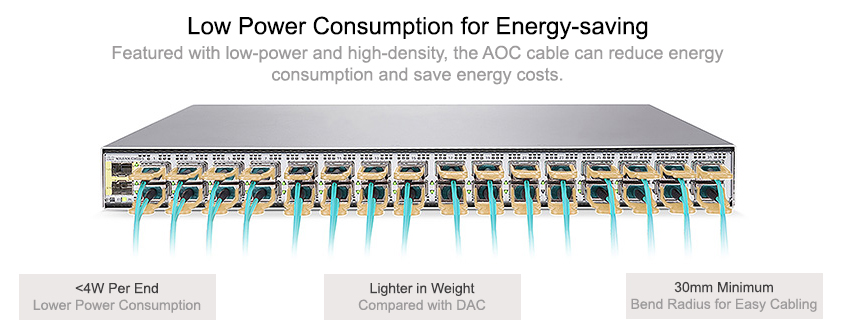

AOC-200G-QSFP28DD Features

Applications
  • 200G (2x 100GBASE-SR4) Ethernet

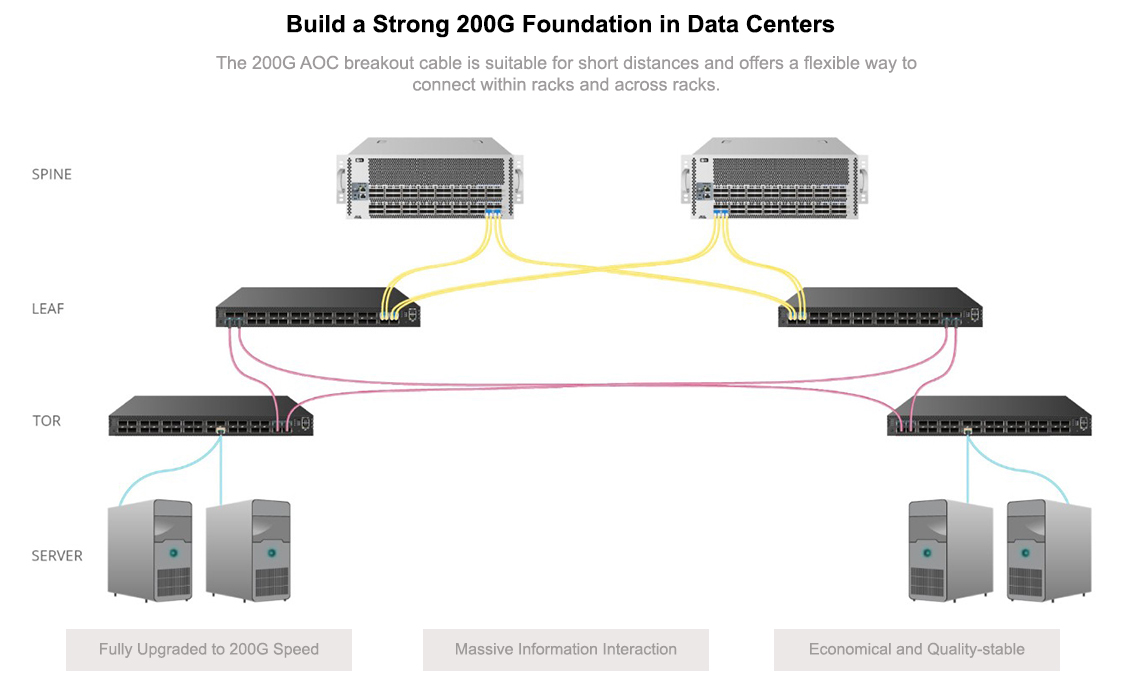

Connection Diagram

200G QSFP28-DD to QSFP28-DD AOC Connection Diagram


SPECIFICATIONS
Connector A 200G QSFP28-DD
Connector B 200G QSFP28-DD
Max Data Rate 206.25Gbps
Max Length 100m (328ft)
Wavelength 850nm
Media OM4 MMF
Temperature 0 to 70°C (32 to 158°F)
Power Consumption < 4W per end
