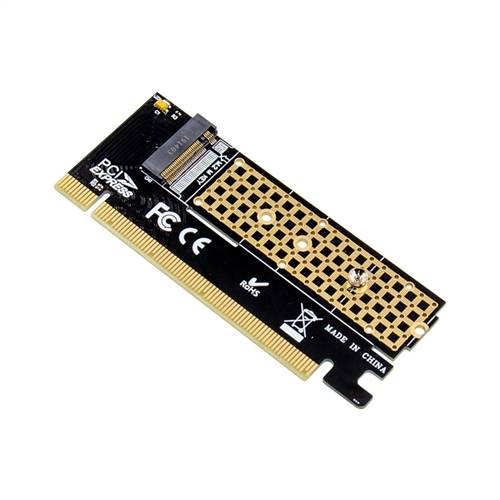

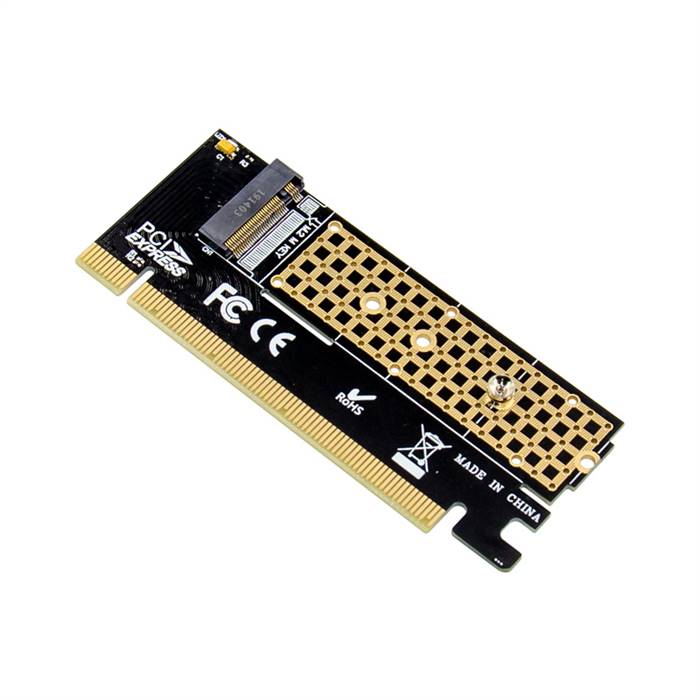

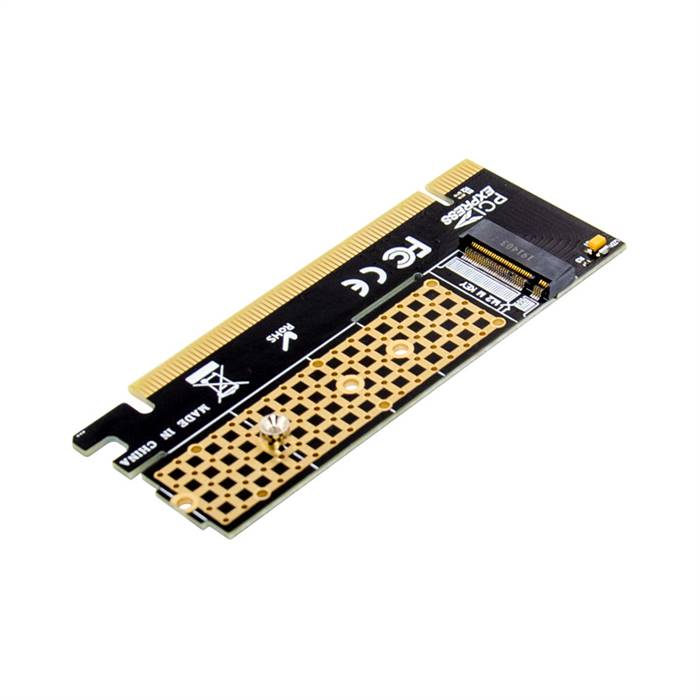

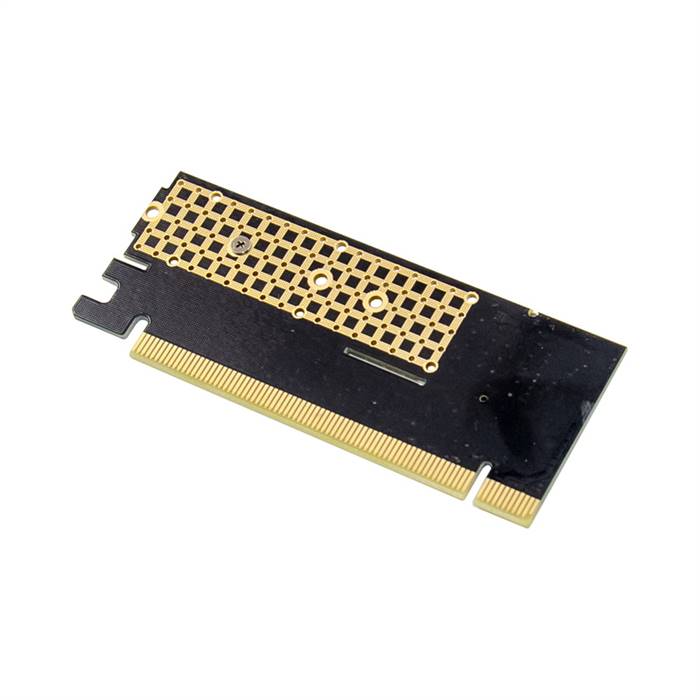

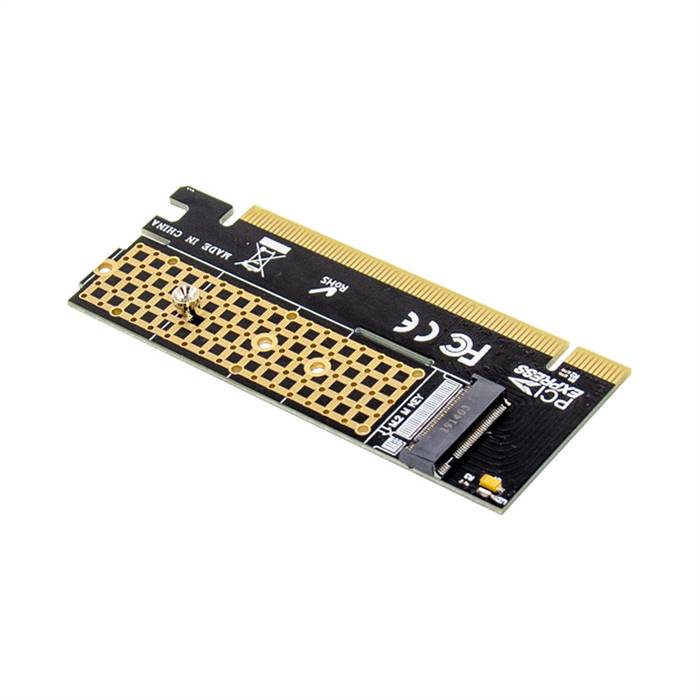

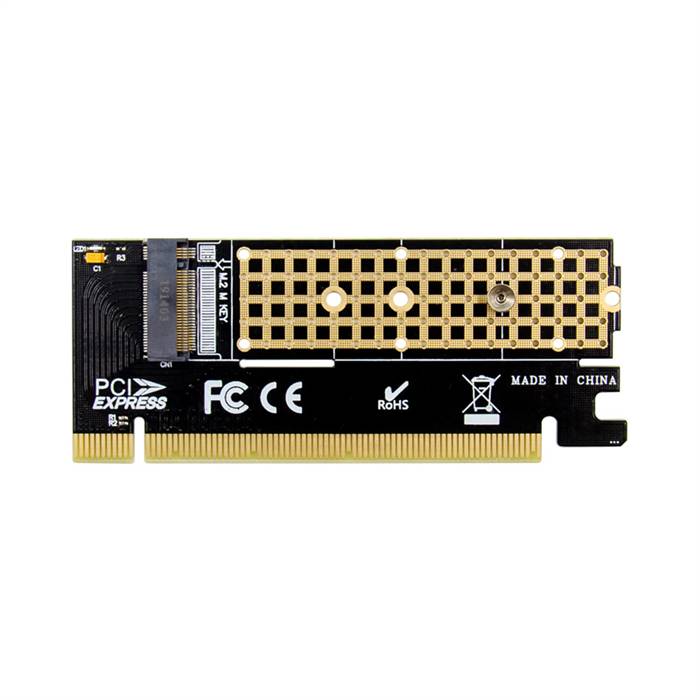

The PCIe x16 to M.2 M-key NVMe SSD Adapter can dramatically increase speed and performance by adding one M.2 M-key PCIe SSD (NVMe or AHCI) TO your windows 10, 8.X, 7, or any PCIe x16 equipped desktop computer. It supports most PCIe NVMe M2 M Key SSD sizes including 2230, 2242, 2260, and 2280. It supports PCIe 3.0 motherboard and backward compatible with PCIe 1.0 and PCIe 2.0. It has to be installed into PCI Express x16 bus slot. Simple installation, no driver required.

Features

• Adds one M.2 M key PCIe SSD (NVMe or AHCI) to your PCIe equipped desktop computer to dramatically increase speed and performance.
• Accommodates 2230, 2242, 2260 and 2280 form factor M.2 PCIe SSDs (NVMe or AHCI) via multiple mounting holes
• Not compatible with B key M.2 PCIe NVMe/AHCI SSDs or M.2 SATA SSDs
• Compliant with PCI Express Specification Revision 3.0
• Backwards compatible with PCIE V2.0 and V1.0 mainboards
• M.2 PCIe SSD gets it's power supply form the motherboard PCIe BUS slot 3.3V
• Plug and Play compliant with no driver installation required

Specifications

• Bus Interface: PCI Express 3.0 x16
• Connector: M.2 M Key SSD connetor
• SSD type (not included): M.2 M key PCIe SSD (NVMe or AHCI)
• Not compatible with M.2 SATA SSDs
• Compatible drive length: 30 / 42 / 60 / 80 (mm)
• Color: Black
• System Supported: Win 7 / Win 8 / Win 8.1 / Win 10, DOS , Linux2.6.x and above
• Environmental conditions:
  • Operating temperature: 32 to 122 degrees F
  • Storage temperature: 14 to 140 degrees F
  • Relative humidity: 10% to 90% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS

Package Contents

• 1 x PCIE X16 M.2 M Key NVMe SSD Adapter
• 1 x Screw driver
• 1 x User Manual
