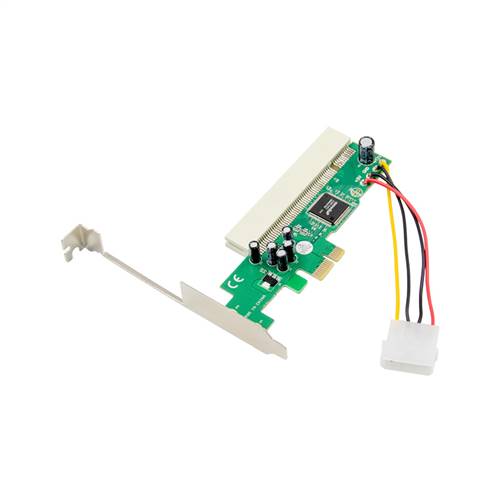

This ADP-PX1-PCI PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place.

A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V). The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems.

Features

• PCI Express single-lan port
• Provide 4-pin connection of power
• PCI v.3.0:32bits,up to 66MHz
• Low power - 400mW
• Accord with version 1.0, compatible version 2.3
• PCI Express 2.5Gbps Database transmission
• PCI Express Base Specification, Revision 1.0a
• PCI Express to PCI Bridge Specification, Revision 1.0
• PCI Express Card Electromechanical Specification, Revision 1.0a

Specifications

• Chipset: Asmedia ASM1083
• Bus Interface: PCI Express x1, Revision 1.0a
• Connectors: PCI v.3.0: 32bits, up to 66MHz
• Power: Provide 4-pin connection of power (Low power - 400mW)
• System Supported: Windows 8.1/Win 8/Win 7/Vista/XP/Server 2003/2000/NT/ Dos/ Linux
