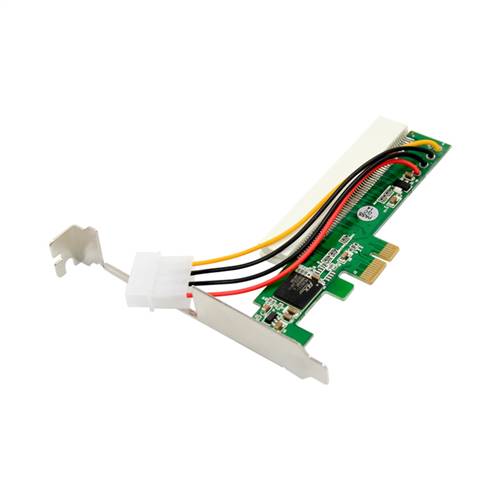

This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place.

A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V). The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems.

Features

• Converts a PCI Express x1 slot into a regular PCI slot - use legacy PCI devices on your PC
• Easy Plug and Play Installation
• Provide 4 pin power connector (uses standard 12V and 5V drive power plug )
• PCI Express 1 Lane Port (1 virtual channel), 2.5Gbps per direction
• Supports PCI 32 bit 33MHz bus one slot
• PCI Express Specification Version 1.0 Compliant
• PCI Specification Version 2.3 Compliant
• Supports PCI slot 3.3V/1A, 3.3V/100mA, 5V/5A and 12V/500mA
• OS support: Windows 2000/NT/2003/ XP/Vista/2008/Win7, Linux
• No driver is required

Specifications

• Chipset: PEX8112-AA66
• Bus Interface: PCI Express x1
• Connectors: PCI v.2.3: 32bits, up to 33MHz
• Power: PCI slot 3.3V/1A, 3.3V/100mA, 5V/5A and 12V/500mA
• System Supported: Windows 8.1/Win 8/Win 7/Vista/XP/Server 2003/2000/NT/ Dos/ Linux
