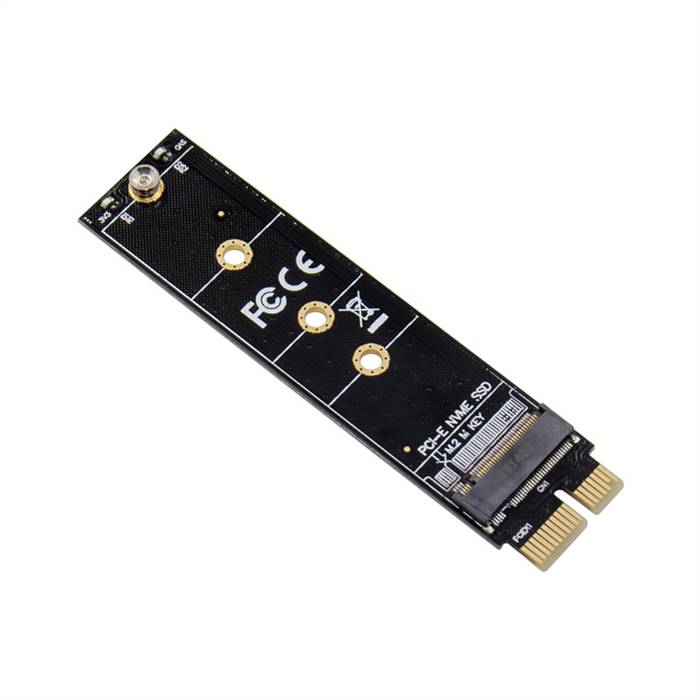

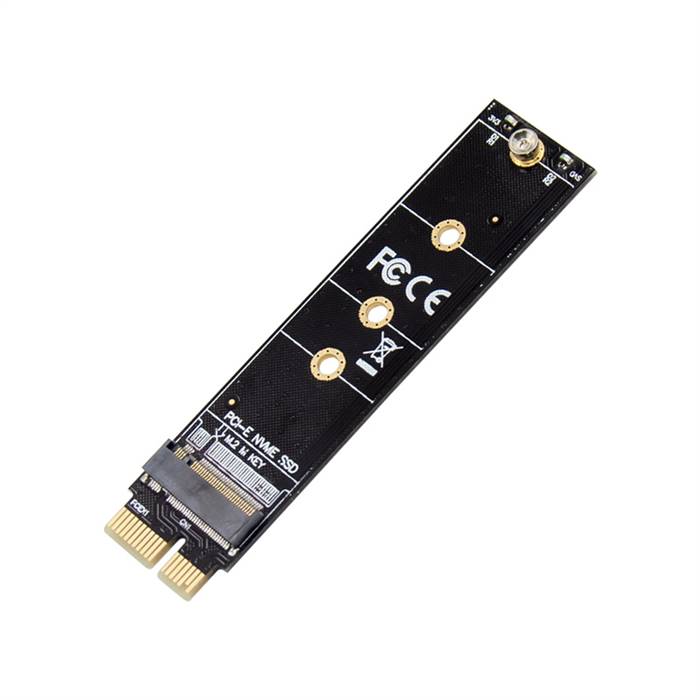

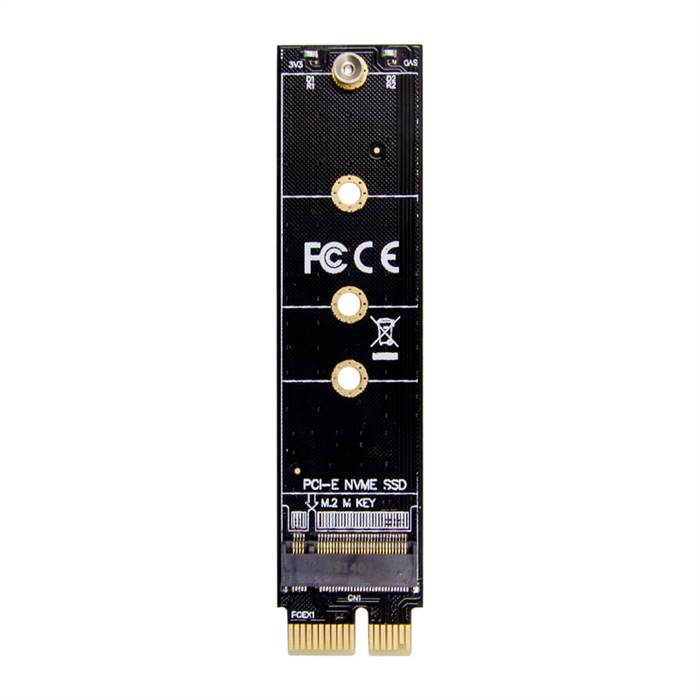

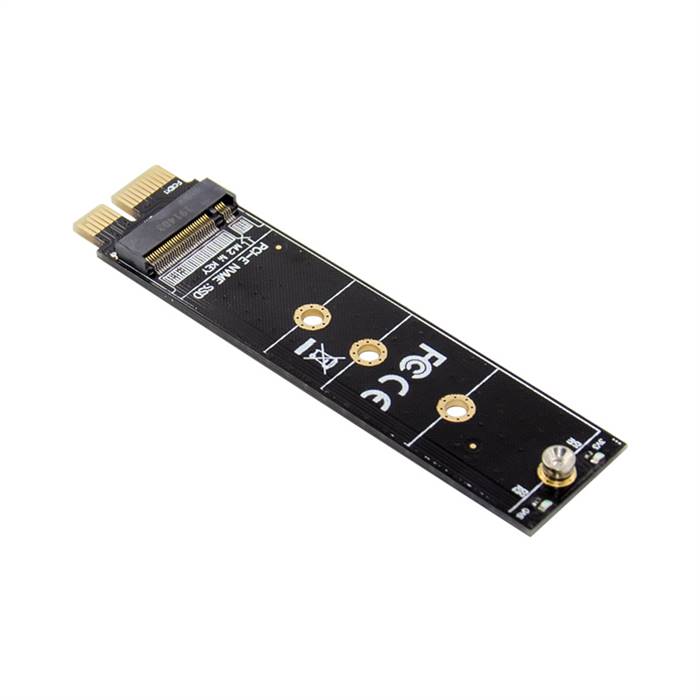

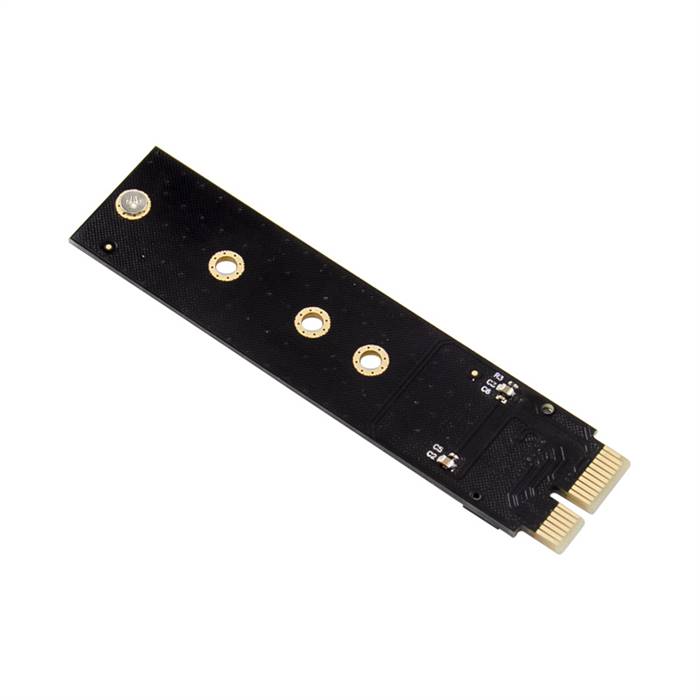

PCIe x1 to M.2 M-key NVMe SSD Adapter
PCIe x1 to M.2 M-key NVMe SSD Adapter

Alternative Views:


Our Price: $3.50
Warranty: 1 Year Warranty


Product Code: ADP-PX1-M2M
Qty:

Description


Overview

  • Adds one M.2 M key PCIe (NVMe or AHCI) SSD to your PCIe equipped computer to dramatically increase speed and performance.
  • Adopt PCIE X1 interface design, simple and firm installation.
  • External power supply, more power, excellent and stable performance.
  • The power supply uses 2 imported large solid capacitors to make the power supply more stable.
  • The copper studs holding the SSD are removable for easy connection to various SSDs.
  • Gold-plated interface with better abrasion resistance and higher electrical conductivity.

Features

  • Allows users to use standard M.2 SSD to desktop PCIe x1 / x4 / x8 / x16 slots, but the speed is only 1x.
  • Support 2230/2242/2260/2280 Type M.2 card size.
  • Only M.2 Key M SSD based on PCIe X1 slot is supported. M.2 SATA bus B key SSD is not supported.
  • M.2 NVME to PCIe riser.
  • PCIE interface, support PCI Express Rev3.0 X1 signal.
  • Work in PC desktop office or Game Player.
  • Small size and easy installation. (Multiple PCIe interfaces on the motherboard can test multiple SSDs at the same time)
  • No drivers required, support all systems

Specifications

  • Bus Interface: PCI Express X1 rev3.0
  • M.2 Type: M.2 Specification Revision 0.9
  • Interface: 1 x M.2 M KEY Connectors
  • Data Rate: transmit speeds up to 6Gbps
  • SSD Size Supported: 2230, 2242, 2260, 2280
  • OS Compatibility: Windows, Mac, Linux and above
