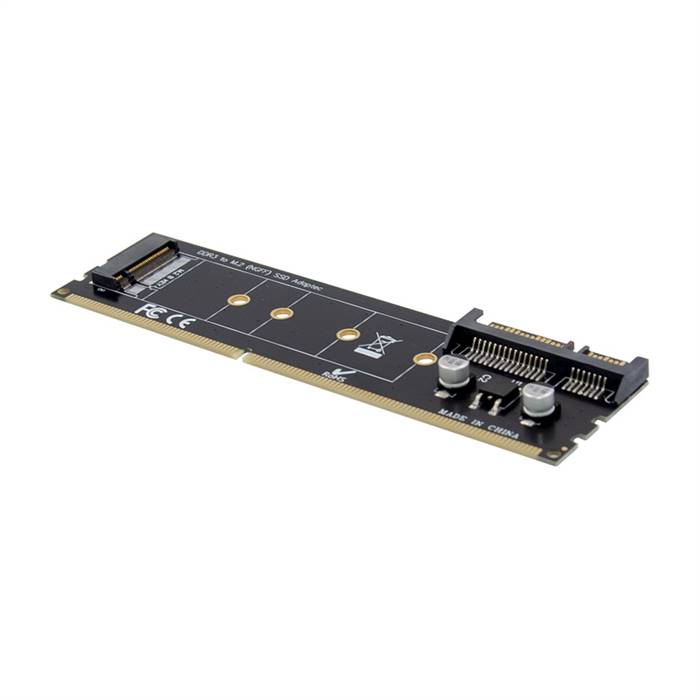

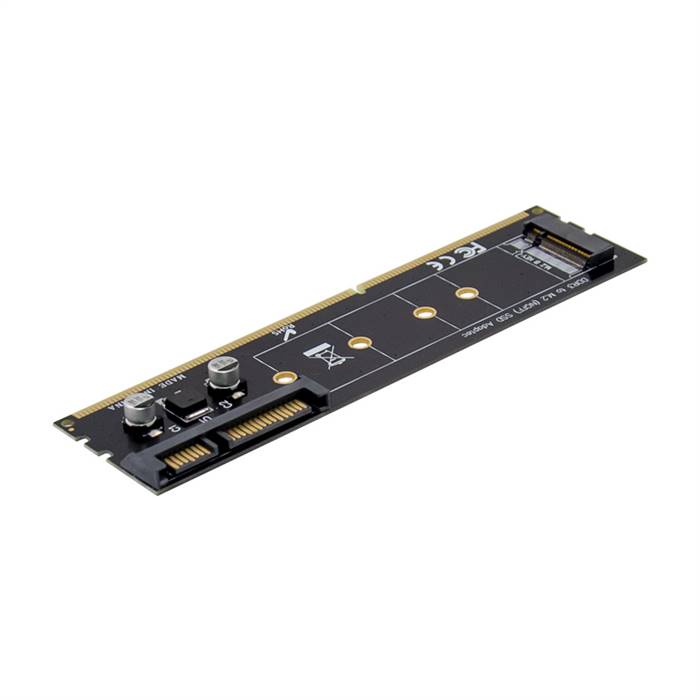

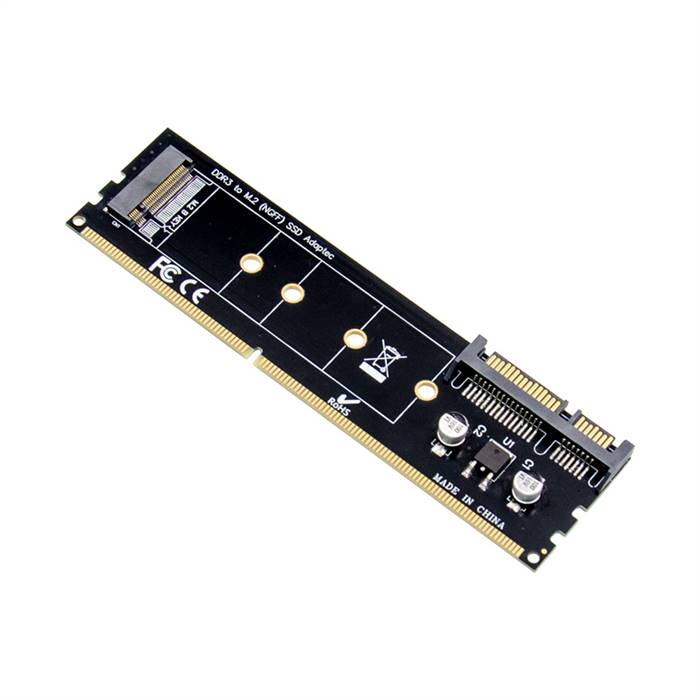

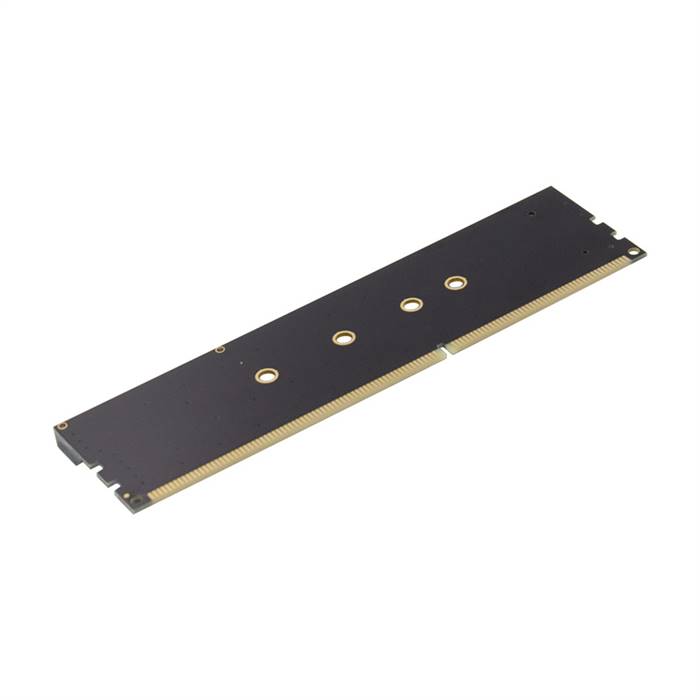

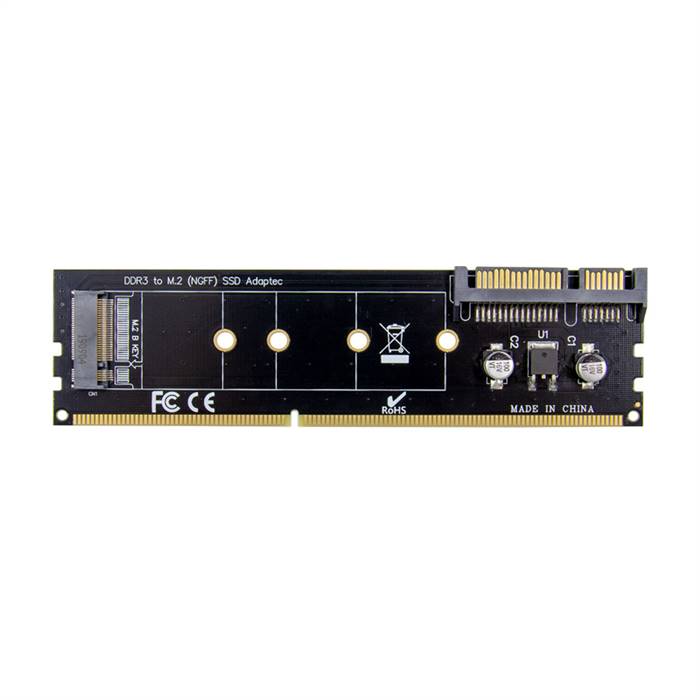

This ADP-D3-M2 DDR3 to M.2 B-key NGFF SSD Adapter adds a M.2 B-key slot to computers with a DDR3 slot to increase system performance. It turns an unused DDR3 slot to a M.2 B-key slot. Allow users to convert M.2 B-key SATA SSDs to SATA III through a DDR3 memory slot. The adapter uses 2 imported large solid capacitors to make the power supply more stable. Fixed SSD copper studs are removable for easy connection to a wide range of SSDs.

Features

• Supports DDR3 desktop motherboards
• DDR3 memory slot M.2 SSD to SATA expansion board
• SATA 15-pin power and SATA 7-pin data port need to be connected to the motherboard
• Support M.2 NGFF SSDs of 2230, 2242, 2260, 2280 size
• Only M.2 SATA protocol key B SSD is supported, M.2 M Key SSD is not supported
• OS independent; No software or drivers required

Specifications

• Host Bus Interface: DDR3 memory slot
• Connector
  • 1 x M.2 B-key Connector
  • 1 x 7+15Pin SATA Port
• Drive Type: M.2 B-key
• Max Transfer Rate: 6 Gbps
• SSD Sizes: 2230, 2242, 2260, 2280
• System Supported: Windows , Mac, Linux and above

Package Contents

• 1 x DDR3 to M.2 NGFF SSD Adapter
• 1 x User Manual
• 3 x Screws
• 1 x Screw Driver
