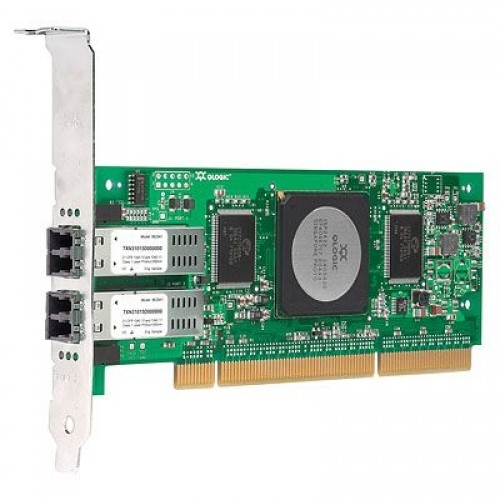

AB379B
HP PCI-X dual-port, 4Gb Fibre Channel adapter

Bus specification: Standard PCI-X, 64-bit, 266/133/66 MHz, Compliant with PCI-X specification v2, Compatible with 3.3V slots
Transfer rate: 4Gb, 2Gb or 1Gb, auto--negotiates
Max transfer rate: 800 MB/s full duplex per channel, 400 MB/s half duplex per channel
HP-UX systems supported (maximum adapters): HP 9000 Superdome(192), rp8420(16), rp7420(15), rp4440(8), rp4410(8), rp3440(4), rp3410(2), Integrity Superdome(192), rx8640(16), rx8620(16), rx7640(15), rx7620(15), rx6600(8), rx4640(6), rx3600(8), rx2660, rx2620(4), rx1620(2)
OpenVMS Systems: Integrity SuperDome; (8partition), rx8640; (8 partition), rx8620; (8 partition), rx7640; (8 partition), rx7620; (8 partition), rx6600(8), rx4640(6), rx3600(8), rx2660, rx2620(4), rx1620(2)
Microsoft Windows Server 2003 Enterprise and Datacenter Editions (maximum adapters): Superdome [sx2000], (16/partition), rx8640 (8), rx7640 (6), rx6600 (6), rx3600 (6), rx2660
Linux support RHEL 4U4 SLES 10 & SLES 9 SP3: HP 9000 Superdome, sx2000 (8), sx1000 (8), rx8640 (8), rx8620 (8), rx7640 (6), rx7620 (6), rx6600 (4), rx3600 (4)
Operating systems: HP-UX 11i v1, HP-UX 11i v2, Microsoft Windows Server 2003 Enterprise and Datacenter Editions, OpenVMS V8.3
Connector type: LC (SFF)
Fibre Channel protocols: FCP (SCSI-FCP), FC-Tape (FCP-2)
Fibre Channel topology: arbitrated loop (NL_Port), and switched fabric (N_Port)
Fibre Channel protocol compliance: SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel Physical and Signaling Interface (FC-PH), Fibre Channel 2nd Generation (FC-PH-2), Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3), Fibre Channel-Arbitrated Loop (FC-AL-2), Fibre Channel-Private Loop DirectAttach Technical Report (FC-PLDA), Fibre Channel Tape (FC-TAPE) profile, SCSI Fibre Channel Protocol-2 (FCP-2), Second Generation FC Generic Services (FC-GS-3), Third Generation FC Generic Services (FC-GS-3), Fibre Channel Framing and Signaling (FC-FS)
DC power characteristics: 6.5 W (nominal); 7.5 W (max)
