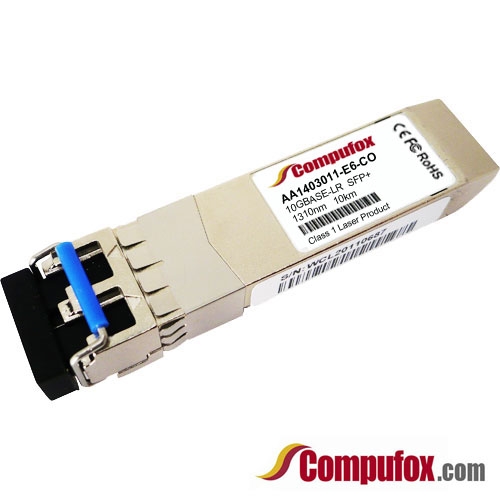

AA1403011-E6 | Avaya Nortel Compatible 10G SFP+ Optical Transceiver
AA1403011-E6 | Avaya Nortel Compatible 10G SFP+ Optical Transceiver

Our Price: $25.00

Warranty: 1 Year Warranty


Free Shipping
Product Code: AA1403011-E6-CO


Compatibility: 		Please input the model of the switch or router on which you will install this transceiver

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description Datasheet

Avaya Nortel AA1403011-E6 Compatible 10GBASE-LR SFP+ Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM).

10GBase-SR Features

Form Factor SFP+

Data Rate 10G

Wavelength 1310nm

Cable Distance* 10km

Connector Duplex LC

Cable Type SMF

Transmitter Type DFB

Receiver Type PIN

TX Power -8.2~0.5dBm

Receiver Sensitivity <-14.4dBm

Power Budget 6.2dB

Receiver Overload 0.5dBm

Power Consumption ≤1W

Extinction Ratio >3.5dB

DDM/DOM Yes

Commercial Temperature 0 to 70°C

* Minimum cabling distance for LR modules is 2m, according to the IEEE 802.3ae.

Responsive Video


Compatible Switches:

Avaya ERS 3500 Series:
ERS 3549GTS (AL3500E06-E6)
ERS 3549GTS-PWR+ (AL3500E16-E6)

Avaya ERS 4800 Series Models:
ERS 4826GTS (AL4800E79-E6)
ERS 4826GTS-PWR+ (AL4800E89-E6)
ERS 4850GTS (AL4580E78-E6)
ERS 4850GTS-PWR+ (AL4800E88-E6)

Avaya ERS 5900 Series:
ERS 5928GTS (AL5900E1B-E6) (AL5900E1F-E6)
ERS 5928GTS-PWR+ (AL5900E2B-E6)(AL5900E2F-E6)
ERS 5952GTS (AL5900E3B-E6)(AL5900E3F-E6)
ERS 5952GTS-PWR+ (AL5900E4B-E6)(AL5900E4F-E6)

Avaya ERS 8800 Series:
ERS 8003R Chassis (DS1402011-E5)
8812XL Ethernet Interface Module (DS1404121-E6)
ERS 8006 Chassis (DS1402002-E5)
8812XL Ethernet Interface Module (DS1404121-E6)
ERS 8010 Chassis (DS1402001-E5)
8812XL Ethernet Interface Module (DS1404121-E6)
ERS 8010co Chassis (DS1402004-E5)
8812XL Ethernet Interface Module (DS1404121-E6)

Virtual Services Platform 4000 Series:
VSP 4450GSX-PWR+ (EC4400E05-E6)
VSP 4850GTS (EC4800E78-E6)
VSP 4850GTS-PWR+ (EC4800E88-E6)
VSP 4850GTS (EC4800078-E6)

Virtual Services Platform 7000 Series:
VSP 7024XLS (AL700001F-E6)
VSP 7024XLS (AL700001B-E6)
VSP 7008XLS (AL7000MS1-E6)

Virtual Services Platform 7200 Series:
VSP 7254XSQ (EC7200E3F-E6)

Virtual Services Platform 8000 Series:
VSP 8284XSQ (EC8200E01-E6)

Virtual Services Platform 9000 Series:
VSP 9012 Chassis (EC1402001-E6)
9024XL (EC1404001-E6) 10G Ethernet SFP+ Interface Module
9048XS-2 (EC1404005-E6) 48-port 10G Ethernet SFP+ Interface Module
