A-D800-D800-7M | Arista Compatible 800G QSFP-DD to QSFP-DD AOC
A-D800-D800-7M | Arista Compatible 800G QSFP-DD to QSFP-DD AOC | Compufox.com

Our Price: $2,715.00

Warranty: 1 Year Warranty
Leadtime: 4 Weeks Lead Time


Product Code: A-D800-D800-7M-CO


Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description Datasheet

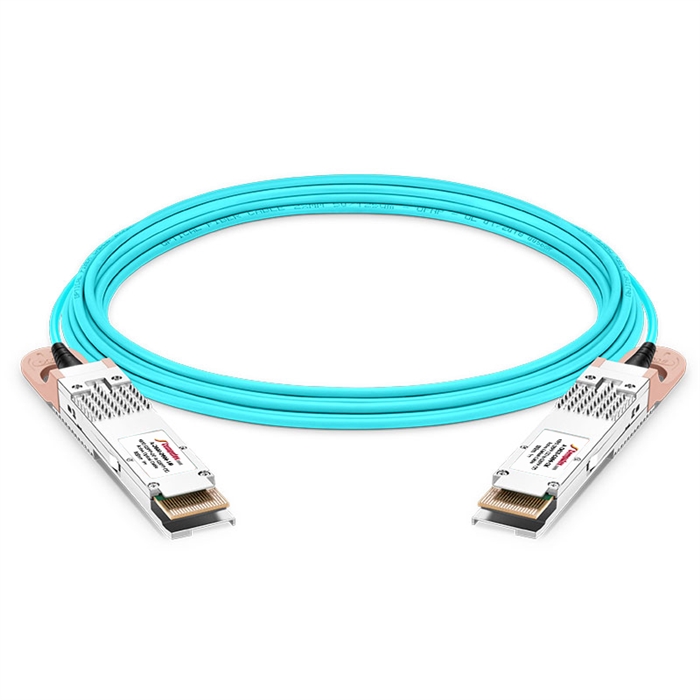

Arista A-D800-D800-7M Compatible 800G QSFP-DD AOC (7-meter, QSFP-DD to QSFP-DD).

The 800G QSFP-DD Active Optical Cable is designed for 800 Gigabit Ethernet links over OM4 multimode fiber. This cable is compliant with IEEE 802.3ck, QSFP-DD HW Specification Rev 6.3, and CMIS Rev 5.0. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.

Connection Diagram
Direct Connection for 400G QSFP-DD AOC

Specifications

Form Factor QSFP-DD to QSFP-DD

Data Rate 800Gbps

Cable Length 7m (23ft)

Cable Type OM4

Wavelength 850nm

Minimum Bend Radius 30mm

Transmitter Type VSCEL

Receiver Type PIN

Power Consumption 12W

DDM/DOM Yes

FEC Supported

Modulation Format PAM4

Protocols QSFP-DD HW Specification Rev 6.3, CMIS Rev 5.0

Commercial Temperature 0 to 70°C

Application Ethernet
