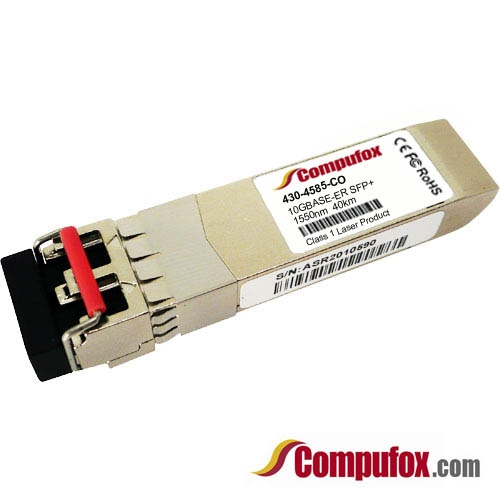

430-4585 | Dell Compatible 10G SFP+ Optical Transceiver
430-4585 | Dell Compatible 10G SFP+ Optical Transceiver

Our Price: $95.00

Warranty: 1 Year Warranty


Free Shipping
Product Code: 430-4585-CO


Compatibility: 		Please input the model of the switch or router on which you will install this transceiver

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description Datasheet

Dell 430-4585 Compatible 10GBASE-ER SFP+ Optical Transceiver Module (SMF, 1550nm, 40km, LC, DOM).

Features:

10GBase-SR Features

Form Factor SFP+

Data Rate 10G

Wavelength 1550nm

Cable Distance* 40km

Connector Duplex LC

Optical Components EML 1550nm

Cable Type SMF

DDM/DOM Yes

TX Power -1~4dBm

Receiver Sensitivity < -16dBm

Core Size 9/125µm

Modulation NRZ

Commercial Temperature 0 to 70°C

Protocols SFP+ MSA Compliant, CPRI, eCPRI

* Minimum cabling distance for ER modules is 2m, according to the IEEE 802.3ae.

Important: When the long reach transceiver is used in short distance transmission, please use the appropriate attenuator according to the table.

10GBase-SR Features

Distance / Attenuator

≤ 5km / 7dB

≤ 10km / 5dB

≤ 20km / 3dB


Responsive Video

This product is compatible with the following systems:
  • Dell Networking C1048P
  • Dell Networking C9010
  • Dell Networking N1500 Series
  • Dell Networking N2000 Series
  • Dell Networking N2024
  • Dell Networking N2024P
  • Dell Networking N2048
  • Dell Networking N3000 Series
  • Dell Networking N3024
  • Dell Networking N3024EF-ON
  • Dell Networking N3024EP-ON
  • Dell Networking N3024ET-ON
  • Dell Networking N3024F
  • Dell Networking N3024P
  • Dell Networking N3048
  • Dell Networking N3048EP-ON
  • Dell Networking N3048ET-ON
  • Dell Networking N3048P
  • Dell Networking N3132PX-ON
  • Dell Networking N4000 Series
  • Dell Networking N4032
  • Dell Networking N4032F
  • Dell Networking N4064
  • Dell Networking N4064F
  • Dell Networking S4048-ON
  • Dell Networking S4048T-ON
  • Dell Networking S4810-ON
  • Dell Networking S5000
  • Dell Networking S5212F-ON
  • Dell Networking S5224F-ON
  • Dell Networking S5232F-ON
  • Dell Networking S5248F-ON
  • Dell Networking S5296F-ON
  • Dell Networking S6000
  • Dell Networking S6000 ON
  • Dell Networking S6100
  • Dell Networking X1018
  • Dell Networking X1026
  • Dell Networking X1052
  • Dell Networking X4012
  • Dell Networking Z9100
  • Dell Networking Z9500
  • OptiPlex GX260 DT
  • PowerConnect 5524
  • PowerConnect 5524P
  • PowerConnect 5548
  • PowerConnect 5548p
  • PowerConnect 6224
  • PowerConnect 6224F
  • PowerConnect 6224P
  • PowerConnect 6248
  • PowerConnect 6248P
  • PowerConnect 7024
  • PowerConnect 7024F
  • PowerConnect 7024P
  • PowerConnect 7048
  • PowerConnect 7048P
  • PowerConnect 7048R
  • PowerConnect 8024
  • PowerConnect 8024F
  • PowerConnect 8100
  • PowerConnect M6348
  • PowerConnect M8024
  • PowerEdge C4130
  • PowerEdge C4140
  • PowerEdge C6320
  • PowerEdge C6420
  • PowerEdge FC420
  • PowerEdge FC430
  • PowerEdge FC620
  • PowerEdge FC630
  • PowerEdge FC640
  • PowerEdge FC830
  • PowerEdge FX2
  • PowerEdge M1000e
  • PowerEdge M420
  • PowerEdge M520
  • PowerEdge M620
  • PowerEdge M640
  • PowerEdge M640 VRTX
  • PowerEdge M820
  • PowerEdge R200
  • PowerEdge R220
  • PowerEdge R230
  • PowerEdge R240
  • PowerEdge R300
  • PowerEdge R320
  • PowerEdge R330
  • PowerEdge R340
  • PowerEdge R410
  • PowerEdge R415
  • PowerEdge R420
  • PowerEdge R430
  • PowerEdge R440
  • PowerEdge R510
  • PowerEdge R515
  • PowerEdge R520
  • PowerEdge R530
  • PowerEdge R540
  • PowerEdge R610
  • PowerEdge R620
  • PowerEdge R630
  • PowerEdge R640
  • PowerEdge R6415
  • PowerEdge R710
  • PowerEdge R715
  • PowerEdge R720
  • PowerEdge R720XD
  • PowerEdge R730
  • PowerEdge R730xd XL
  • PowerEdge R740
  • PowerEdge R740XD
  • PowerEdge R740xd2
  • PowerEdge R7415
  • PowerEdge R7425
  • PowerEdge R805
  • PowerEdge R810
  • PowerEdge R815
  • PowerEdge R820
  • Poweredge R830
  • PowerEdge R840
  • PowerEdge R900
  • PowerEdge R905
  • PowerEdge R910
  • PowerEdge R920
  • PowerEdge R930
  • PowerEdge R940
  • PowerEdge R940xa
  • PowerEdge T130
  • PowerEdge T140
  • PowerEdge T330
  • PowerEdge T340
  • PowerEdge T410
  • PowerEdge T420
  • PowerEdge T430
  • PowerEdge T440
  • PowerEdge T610
  • PowerEdge T620
  • PowerEdge T630
  • PowerEdge T640
  • PowerEdge T710
  • PowerEdge XR2
  • PowerVault DL2100
  • PowerVault DL2200
  • PowerVault DR4100
  • PowerVault NX3000
  • PowerVault NX3200
  • PowerVault NX3300
  • PowerVault NX400
  • PowerVault NX440
