403621-B21

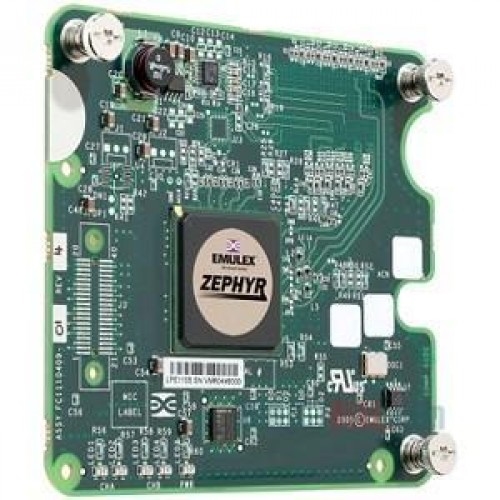

HP 4Gb/s Fibre Channel Mezzanine Card HBA for the HP BladeSystem c-Class

Standards
ANSI Fibre Channel: FC-PH-3, FC-PI-2, FC-FS, FC-AL-2, FC-GS-4, FC-FLA, FC-PLDA, FC-TAPE, FCP-2 and RFC 2625 (IP over FC)
PCI Express base spec 1.0a
Fibre Channel class 2 and 3
PHP hot plug-hot swap

Architecture
Dual-channel
4Gb/s, 2Gb/s or 1Gb/s FC Link speeds automatically detected
Integrated data buffer and code space memory

Comprehensive OS Support
Windows Server 2003, Linux, Windows 2000, VMware, HP-UX 11i v3

Hardware Environments
HP c-Class BladeSystem

Power & Environmental Requirements
Volts: +3.3VDC
Power consumption (typ/max): 4.6W / 6.5W
Operating temperature: 0° to 60°C (32° to 140°F)
Airflow required: 300 lf/m
Storage temperature: -40° to 70°C (-40° to 158°F)
Relative humidity: 5% to 95% non-condensing

Agency Approvals
UL recognized to UL 60950-1
CUR recognized to CSA22.2, No. 60950-1-03
TUV certified to EN60950-1
FCC rules, Part 15, Class A
ICES-003, Class A
EMC Directive 2004/108/EEC (CE Mark)
EN55022, Class A
EN55024
Australian EMC Framework (C-Tick Mark)
AS/NZS CISPR22, Class A
VCCI, Class A
RoHS Compliant (Directive 2002/95/EC) for environmental requirements
China RoHS compliant
