80km 10GBase-DWDM SFP+ Transceiver for Mikrotik CRS310-1G-5S-4S+IN/netFiber 9
80km 10GBase-DWDM SFP+ Transceiver for Mikrotik CRS310-1G-5S-4S+IN/netFiber 9

Our Price: $265.00

Warranty: 1 Year Warranty


Product Code: SFP-10G-DWDM-CRS310-1G-5S-4SIN


DWDM Wavelength*:

Compatibility: 		Please input the model of the switch or router on which you will install this transceiver

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description

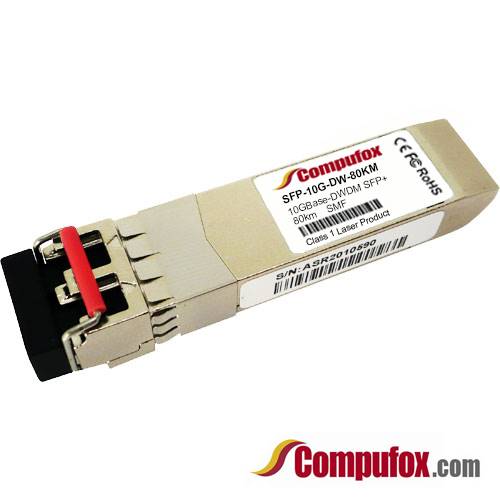

10GBASE-DWDM SFP+ Optical Transceiver (C17-C61, 1563.86nm to 1528.77nm, SMF, 80km, LC, DOM) for Mikrotik CRS310-1G-5S-4S+IN/netFiber 9.

Features
  • Product Type: Transceiver Module
  • Form Factor: SFP+
  • Data Rate (max): 10.5 Gb/s
  • Distance (max): 80KM
  • Transmitter: EML
  • Receiver: APD
  • Digital Diagnostic: Yes
  • Connector: Duplex LC
  • Cable Type: SMF
  • Wavelength: DWDM C-band
  • Operating Temperature: 0 to 70°C (32 to 158°F)

Form Factor

SFP+

Max Data Rate

10Gbps

Wavelength

1563.86nm to 1528.77nm

Max Cable Distance

40km

Connector

Duplex LC

Optical Components

EML DWDM

Media

SMF

DOM Support

Yes

TX Power

0-4dBm

Receiver Sensitivity

<-23dBm

Power budget

23dB

Receiver Overload

-8dBm

Power Consumption

<1.8W

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Bit Error Ratio (BER)

1E-12

Extinction Ratio

-7.5dB

EMC (Electro Magnetic Compatibility)

Supported

MTBF

1,000,000 Hours

Protocols

SFP+ MSA Compliant, CPRI, eCPRI

Warranty

1 Year

Note: When the long reach transceiver is used in short distances, please use the appropriate attenuator according to the table.
